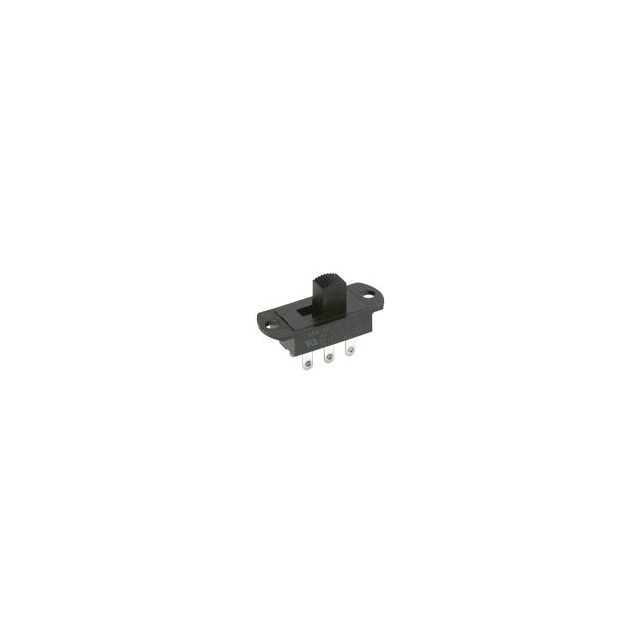

S202032MS04Q Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series S
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 6A (AC), 1A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Standard
Actuator Length 8.51mm
Contact Material Copper
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 4.57mm
Electrical Life 10,000 Cycles
Base Product Number S202032
Standard Package 36
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1233166-S202032MS04Q
Ultra Librarian 3D Model Ultra Librarian S202032MS04Q CAD Model

Description

The S202032MS04Q is a DPDT slide switch from C&K. It has a standard actuator type with an actuator length of 8.51mm and a switch travel of 4.57mm.

  • Circuit: DPDT
  • Actuator Type: Standard
  • Actuator Length: 8.51mm
  • Switch Travel: 4.57mm
  • Switch Function: On-On
  • Mounting: Through a Hole
  • Voltage Rating: 125 V AC and DC
  • Current Rating: 6A (AC) and 1A (DC)
  • Electrical Life: 10,000 cycles
  • Termination Style: PC Pin
  • Contact Finish: Silver
  • Contact Material: Copper
  • Actuator Material: Polyamide (PA66), Nylon 6/6
  • Operating Temperature Range: -30°C to 65°C
  • Package: Bulk
  • Standard Package: 36
