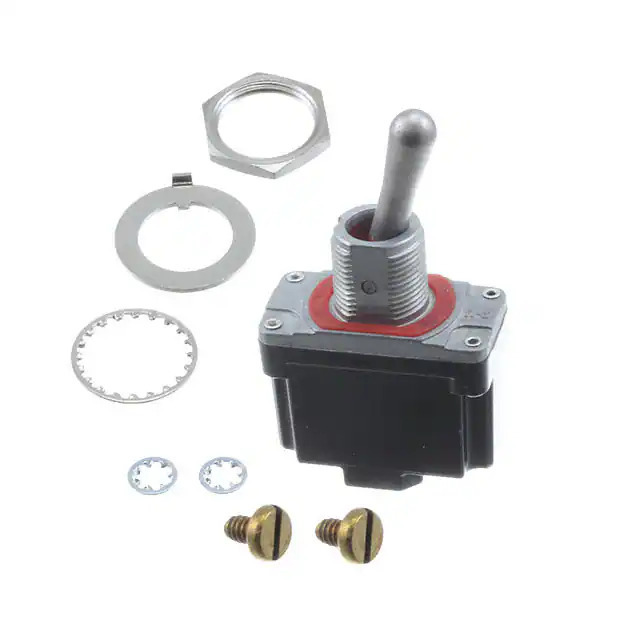

PT102SSQ C&K Components
Same model may have multiple batches, images only for reference.

PT102SSQ

Part No PT102SSQ
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH PT102S TOGGLE
Datasheet
PT102SSQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr C&K
Series PT
Package Tray
Product Status Active
Mounting Type Panel Mount
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 15A (AC/DC)
Voltage Rating - AC 277 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 17.20mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 12.40mm Dia
Bushing Thread 15/32-32
Ingress Protection IP66/IP68 - Dust Tight, Water Resistant, Waterproof
Features Sealed
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Stainless Steel
Electrical Life 10,000 Cycles
Base Product Number PT102S
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375966-PT102SSQ
Ultra Librarian 3D Model Ultra Librarian PT102SSQ CAD Model

Description

The PT102SSQ is a sealed toggle switch from C&K's PT series.

  • Series: PT
  • Mounting Type: Panel Mount
  • Current Rating: 15A (AC/DC)
  • Circuit: SPST
  • Switch Function: On-Off
  • Voltage Rating - AC: 277V
  • Voltage Rating - DC: 28V
  • Actuator Type: Standard Round
  • Actuator Material: Stainless Steel
  • Illumination: Non-Illuminated
  • Termination Style: Screw Terminal
  • Ingress Protection: IP66/IP68
  • Panel Cutout Dimensions: 12.40mm Diameter
  • Electrical Life: 10,000 Cycles
