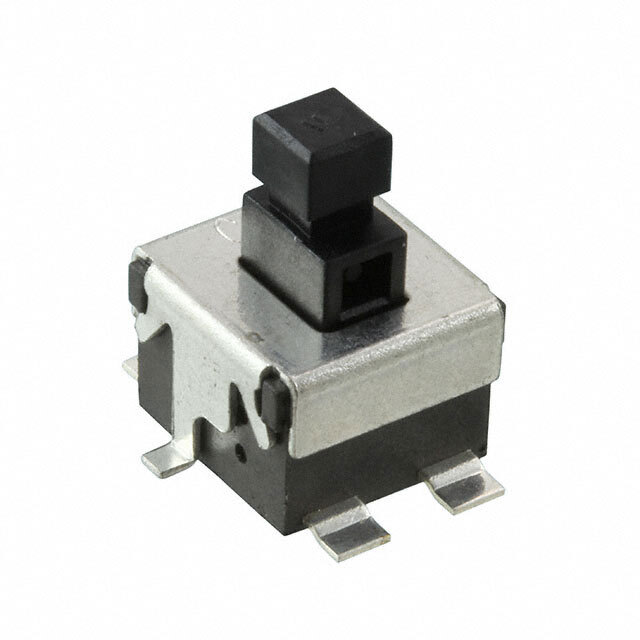

Same model may have multiple batches, images only for reference.
PN22SJSA03QE C&K Components – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PN22SJSA03QE

Part No PN22SJSA03QE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH DPDT 0.2A 30V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Through Hole, Right Angle
Type Standard
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 200mA (DC)
Voltage Rating - DC 30 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -10°C ~ 60°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1557399-PN22SJSA03QE
Ultra Librarian 3D Model Ultra Librarian PN22SJSA03QE CAD Model
