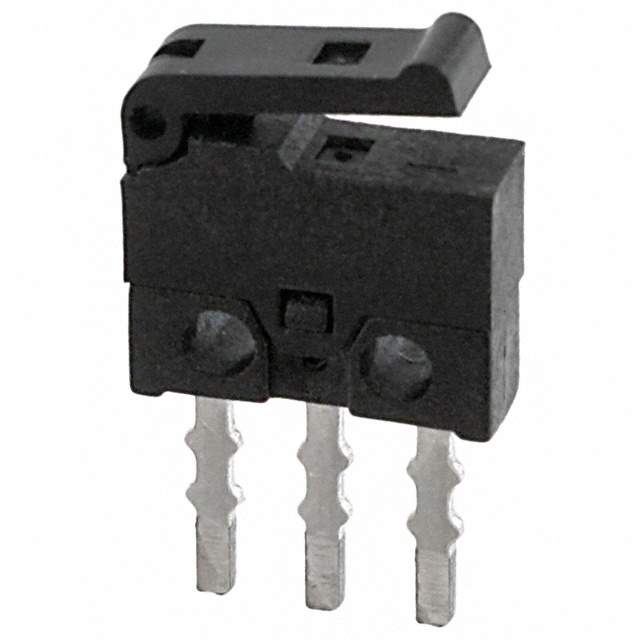

MDS6500AL02PL Real Image
Same model may have multiple batches, images only for reference.

MDS6500AL02PL

Part No MDS6500AL02PL
Manufacturer C&K Components
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 300MA 30V / Switch SPDT Through Hole
Datasheet
MDS6500AL02PL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr C&K
Series MDS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Operating Force 50gf
Release Force 3.000gf
Pretravel 0.071" (1.8mm)
Overtravel 0.011" (0.3mm)
Temperature Range - Operating -25°C ~ 70°C
Operating Position 0.264" (6.7mm)
Electrical Life 30,000 Cycles
Mechanical Life 30,000 Cycles
Base Product Number MDS6500A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Other Names *MDS6500AL02PL,2266-MDS6500AL02PL,CKN9571
Standard Package 500
Win Source Part Number 969610-MDS6500AL02PL
Ultra Librarian 3D Model Ultra Librarian MDS6500AL02PL CAD Model

Description

The MDS series limit switch is a SPDT switch with an on-mom switch function. The termination style for this switch is PC pin and it has a voltage rating of 30VDC. The manufacturer of this switch is C&K and other names for this switch include *MDS6500AL02PL, 2266-MDS6500AL02PL, and CKN9571.

  • Switch Function: SPDT
  • On-Mom Switch Function: Yes
  • Termination Style: PC Pin
  • Voltage Rating: 30VDC
  • Operating Temperature: -25°C ~ 70°C
  • Package Type: Bulk
  • Mounting Type: Through Hole
  • Category: switches>limit switches
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Current Rating: 300mA (DC)
  • REACH Status: REACH unaffected
  • HTSUS: 8536.50.7000
