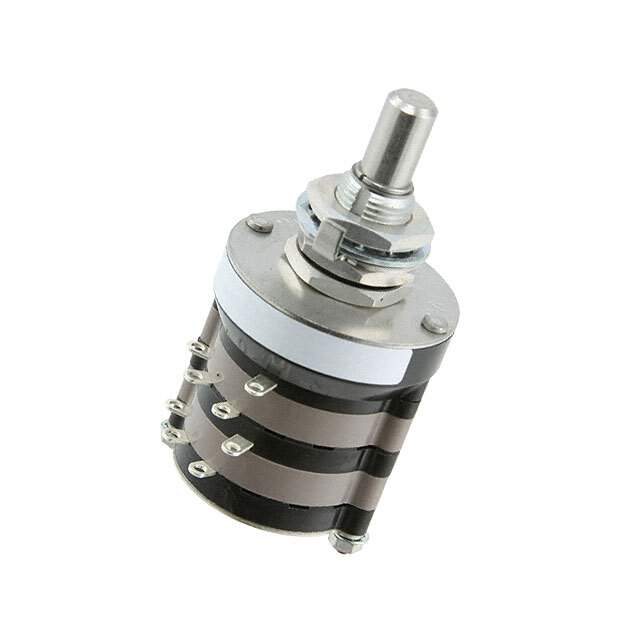

44HS30-02-1-03N Real Image
Same model may have multiple batches, images only for reference.

44HS30-02-1-03N

Part No 44HS30-02-1-03N
Manufacturer Grayhill Inc.
Catalog Rotary Switches
Description SWITCH ROTARY 3POS 1A 115V / Rotary Switch 3 Position SP3T 1A (AC/DC) 115 VAC Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rotary Switches
Mfr Grayhill Inc.
Series 44
Package Bulk
Number of Positions 3
Index Stops Fixed
Number of Decks 2
Number of Poles per Deck 1
Circuit per Deck SP3T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 1A (AC/DC)
Voltage Rating - AC 115 V
Voltage Rating - DC 28 V
Actuator Type Flatted (6.35mm Dia)
Actuator Length 11.10mm
Angle of Throw 30°
Contact Material Silver Alloy
Mounting Type Panel Mount
Termination Style Solder Lug
Features Shaft and Panel Sealed
Depth Behind Panel 34.82mm
Base Product Number 44HS30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Other Names Q5309883,2266-44HS30-02-1-03N
Standard Package 1
Win Source Part Number 989063-44HS30-02-1-03N
Ultra Librarian 3D Model Ultra Librarian 44HS30-02-1-03N CAD Model

Description

The Grayhill Inc. 989063-44HS30-02-1-03N is a 3 position, SP3T circuit rotary switch with a flatted actuator type and a shaft and panel sealed feature.

  • Positions: 3
  • Circuit: SP3T
  • Actuator Type: Flatted
  • Contact Material: Silver Alloy
  • Voltage Rating: 115VAC and 28VDC
  • Panel Cutout: Rectangular
  • Angle of Throw: 30°
  • Mechanical Life: 1,000,000 cycles
  • Current Rating: 1A (AC/DC)
  • Temperature Range: -40°C ~ 85°C
  • ECCN: EAR99
  • Mounting: Panel Mountable
  • Depth Behind Panel: 34.82mm
