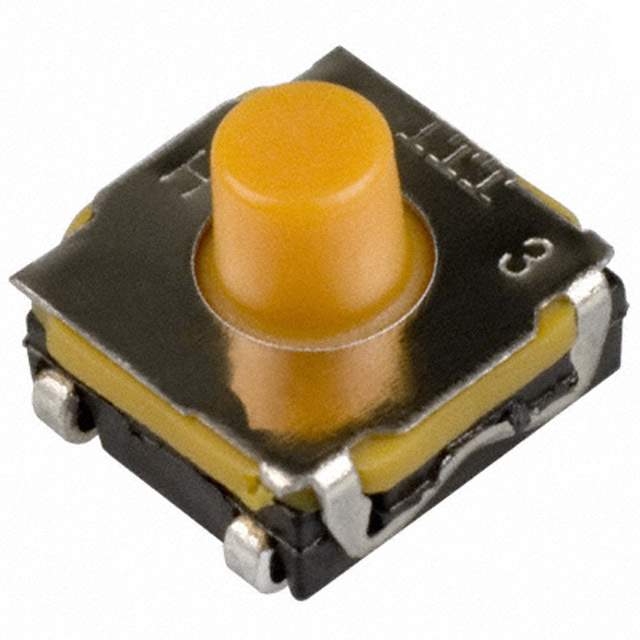

Same model may have multiple batches, images only for reference.

KSC441J70SH

Name: KSC441J70SH
Brand: C&K Components
SKU: 1232951
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	KSC441J70SH
Manufacturer	C&K Components
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 32V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet	KSC441J70SH Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	C&K
Series	KSC
Package	Tape & Reel (TR),Cut Tape (CT)
Product Status	Obsolete
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 32VDC
Actuator Type	Standard
Mounting	SMD (SMT)
Actuator Height off PCB, Vertical	5.20mm
Actuator Orientation	Top Actuated
Termination Style	J Lead
Outline	6.20mm x 6.20mm
Illumination	Non-Illuminated
Operating Force	400gf
Ingress Protection	IP67 - Dust Tight, Waterproof
Temperature Range - Operating	-40°C ~ 85°C
Switch Travel	0.75mm
Mechanical Life	300,000 Cycles
Other Names	KSC441J,KSC441JB,KSC441J,401-1475-1,401-1475-2,KSC441J70SHTR,Y31C41441FP,KSC441J70SH,KSC441J70SHTR,KSC441J 70 SH,401-1082-1,401-1475-1,401-1082-2,401-1475-2
Standard Package	1,000
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1232951-KSC441J70SH
Ultra Librarian 3D Model	Ultra Librarian KSC441J70SH CAD Model

Description

The KSC441J70SH tactile switch is a top-actuated switch with a standard actuator type and a circuit configuration of SPST-NO.

Actuator Type: standard
Circuit: SPST-NO
Switch Function: Off-Mom
Switch Travel: 0.75mm
Contact Rating @ Voltage: 0.05A @ 32VDC
Operating Force: 400gf
Mechanical Life: 300,000 cycles
Temperature Range: -40°C to 85°C
