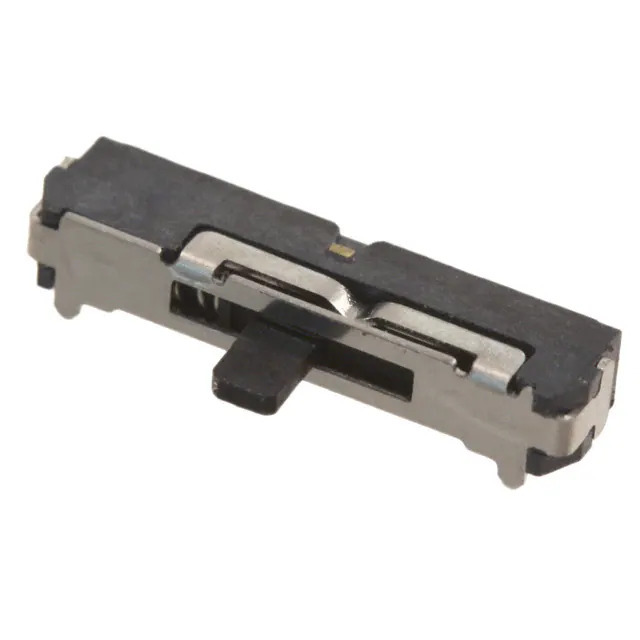

JSM07011SAQNR C&K Components
Same model may have multiple batches, images only for reference.

JSM07011SAQNR

Part No JSM07011SAQNR
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SP3T 300MA 4V
Datasheet
JSM07011SAQNR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr C&K
Series JSM
Package Tape & Reel
Product Status Active
Circuit SP3T
Contact Timing Not Specified
Switch Function On-On-Mom
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 4 V
Actuator Type Standard
Actuator Length 2.00mm
Contact Material Beryllium Copper
Contact Finish Silver
Mounting Type Surface Mount, Right Angle
Termination Style Gull Wing
Features -
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Polyamide (PA46), Nylon 4/6
Switch Travel 2.00mm
Mechanical Life -
Electrical Life 10,000 Cycles
Operating Force -
Base Product Number JSM07011
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376244-JSM07011SAQNR
Ultra Librarian 3D Model Ultra Librarian JSM07011SAQNR CAD Model

Description

The JSM07011SAQNR is a surface mount slide switch from C&K's JSM series.

  • Temperature Range: -30°C to 85°C
  • Current Rating: 300mA (DC)
  • Voltage Rating: 4V
  • Circuit: SP3T
  • Function: On-On-Mom
  • Switch Travel: 2.00mm
  • Actuator Length: 2.00mm
  • Actuator Material: Polyamide (PA46) and Nylon 4/6
  • Mounting: Surface Mount, Right-Angle
