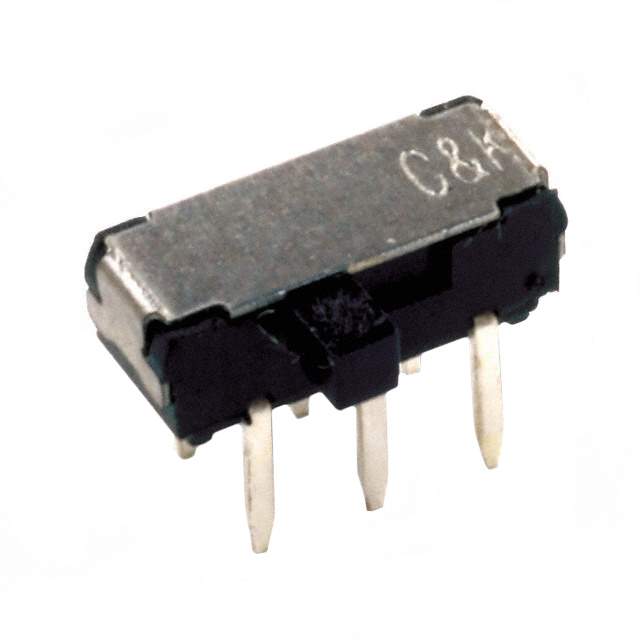

JS202011AQN Real Image
Same model may have multiple batches, images only for reference.

JS202011AQN

Part No JS202011AQN
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 300MA 6V / Slide Switch DPDT Through Hole, Right Angle
Datasheet
JS202011AQN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series JS
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 6 V
Actuator Type Standard
Actuator Length 2.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA46), Nylon 4/6
Switch Travel 2.00mm
Electrical Life 5,000 Cycles
Base Product Number JS202011
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names 401-2000,2266-JS202011AQN,*JS202011AQN
Standard Package 900
Win Source Part Number 1035591-JS202011AQN
Ultra Librarian 3D Model Ultra Librarian JS202011AQN CAD Model

Description

The C&K JS202011AQN is a slide switch component used in various electronic devices.

  • Win Source Part Number: 1035591
  • Circuit Type: DPDT
  • Actuator Type: Standard
  • Electrical Life: 5,000 cycles
  • Illumination: Non-Illuminated
  • Operating Temperature Range: -40°C to 85°C
