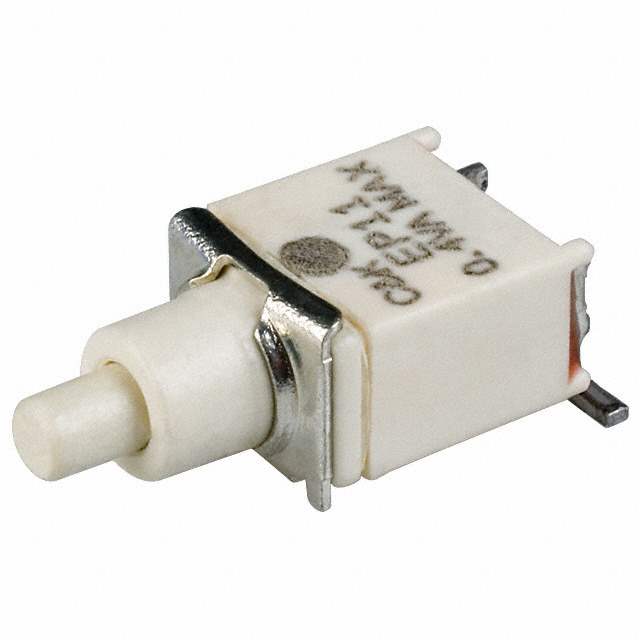

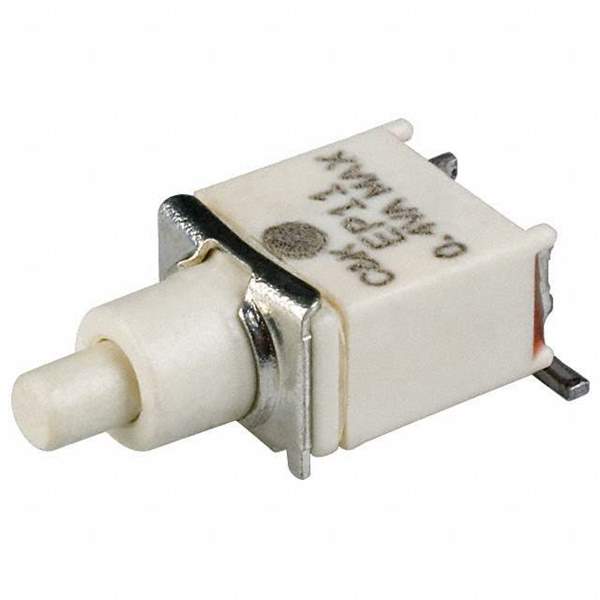

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer C&K Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating 0.4VA (AC/DC)
Voltage Rating - AC 20V
Voltage Rating - DC 20V
Actuator Type Round, Plunger
Color - Actuator/Cap White
Mounting Surface Mount, Right Angle
Termination Style Gull Wing
Ingress Protection IP57 - Dust Protected, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C to 85°C
Electrical Life 60,000 Cycles
Win Source Part Number 114369-EP11SD1SAKE
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EP11SD1SAKE CAD Model

Description

The EP11SD1SAKE is a compact and reliable electronic component tailored for a multitude of applications. Its design emphasizes seamless integration and optimal performance.

Applications and Projects:

  • Embedded systems
  • Portable devices
  • Home automation
  • Smart wearables
  • Remote sensors

Features and Benefits:

  • Compact Form Factor: Ideal for portable and space-limited applications.
  • Reliable Operation: Ensures consistent performance over extended periods.
  • Low Power Consumption: Designed to extend battery life in devices.
  • Easy Integration: Supports quick and efficient incorporation into existing systems.

Additional attributes include enhanced signal integrity and reduced electromagnetic interference, ensuring smooth operation in a variety of settings.
