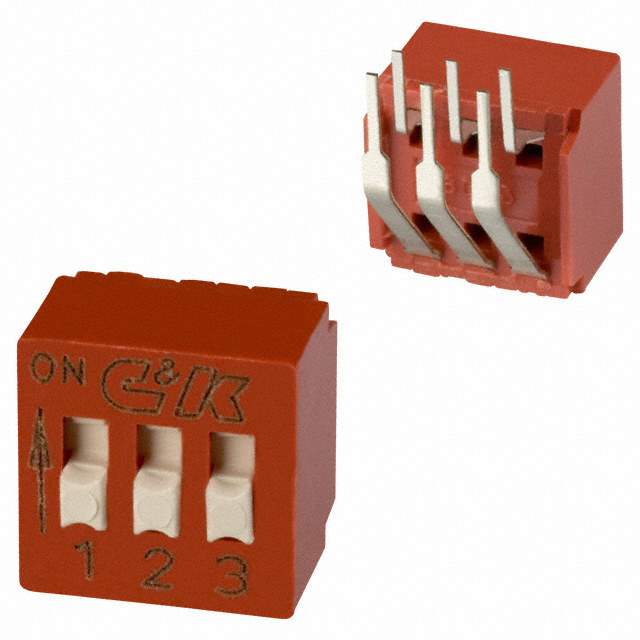

BD03AV Real Image
Same model may have multiple batches, images only for reference.

BD03AV

Part No BD03AV
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 5V / Standard Profile DIP Switches
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer C&K
Packaging Tube
Circuit SPST
Number of Positions 3
Current Rating (Amps) 100mA
Voltage Rating 5VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Phosphor Bronze
Contact Finish Gold
Height Above Board 0.380" (9.64mm)
Mounting Style Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -40°C ~ 85°C
Body Material Polybutylene Terephthalate (PBT), Glass Filled
Length 0.380" (9.65mm)
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Manufacturer Pack Quantity 52
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809171-BD03AV
Ultra Librarian 3D Model Ultra Librarian BD03AV CAD Model

Description

The C&K 809171-BD03AV is a through-hole, right-angle SPST circuit slide switch from C&K.

  • Circuit: SPST
  • Switch Type: Slide Switch
  • Mounting Type: Through Hole, Right Angle
  • Pitch: 0.100" (2.54mm)
  • Voltage Rating: 5VDC
  • Operating Temperature Range: -40°C to 85°C
  • Height Above Board: 0.380" (9.64mm)
  • Package: Tube (52)
  • Contact Finish: Gold
