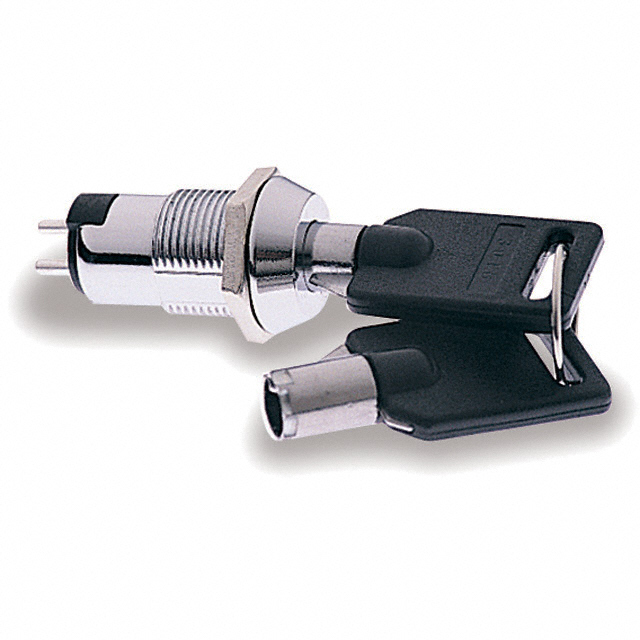

A315132Y2SZNQ

Part No A315132Y2SZNQ
Manufacturer C&K Components
Catalog Keylock Switches
Description SWITCH KEYLK 3POS 3P3T 2.5A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Circuit 3P3T
Number of Positions 3
Switch Function On-On-On
Contact Timing Shorting (MBB)
Current Rating (Amps) 2.5A (AC), 350mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Flat Key
Key Removable Positions 1 only
Angle of Throw 45°
Contact Material Silver (Ag)
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 19.30mm Dia
Features Antistatic
Temperature Range - Operating -30°C ~ 85°C
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1554986-A315132Y2SZNQ
Ultra Librarian 3D Model Ultra Librarian A315132Y2SZNQ CAD Model
