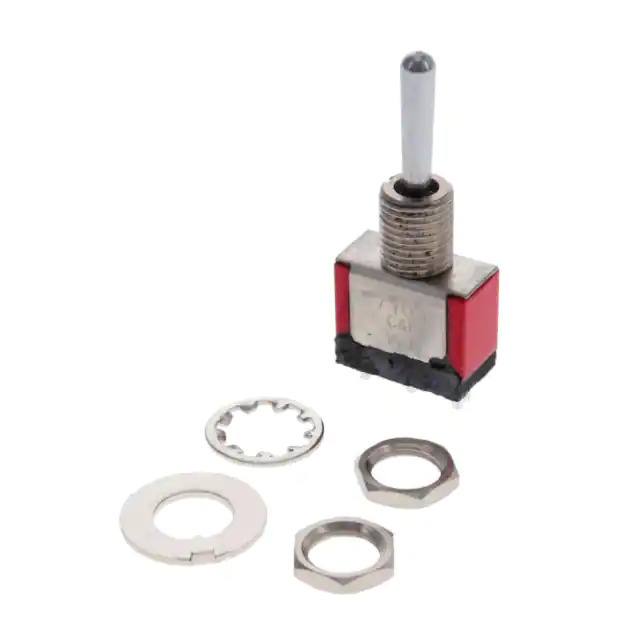

Same model may have multiple batches, images only for reference.
7107TCWZQE C&K Components
Same model may have multiple batches, images only for reference.

7107TCWZQE

Part No 7107TCWZQE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 5A 120V / Toggle Switch SPDT Panel Mount
Datasheet
7107TCWZQE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr C&K
Series 7000
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-Off-Mom
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 17.45mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 11.91mm Dia
Bushing Thread 15/32-32
Ingress Protection IP67 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 40,000 Cycles
Base Product Number 7107TC
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375980-7107TCWZQE
Ultra Librarian 3D Model Ultra Librarian 7107TCWZQE CAD Model

Description

The 1375980-7107TCWZQE is a toggle switch from C&K's 7000 series.

  • Mounting Type: Panel Mount
  • Current Rating: 5A (AC/DC)
  • Circuit: SPDT
  • Voltage Rating: 120V AC and 28V DC
  • Actuator Type: Standard Round
  • Illumination: None
  • Features: Epoxy Sealed Terminals
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Termination Style: Solder Lug
  • Panel Cutout Dimension: 11.91mm diameter
  • Mechanical Life: 40,000 cycles
  • Actuator Material: Brass, Chrome Plated
