Same model may have multiple batches, images only for reference.

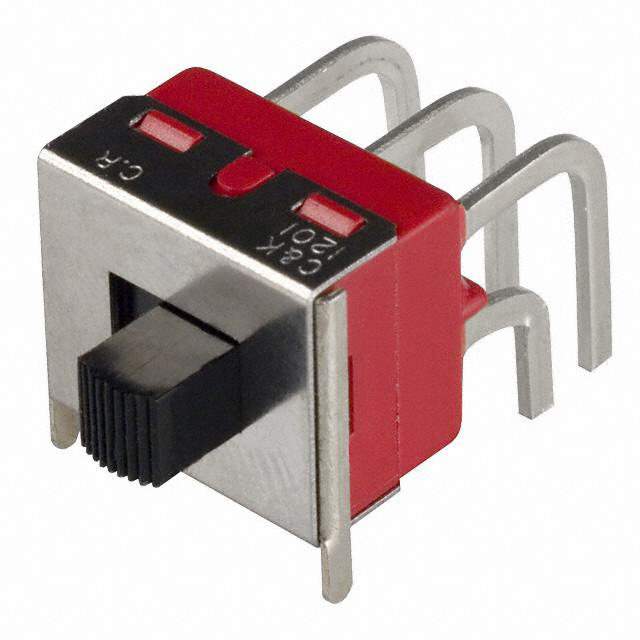

1201M2S3AQE2 Real Image
Same model may have multiple batches, images only for reference.

1201M2S3AQE2

Part No 1201M2S3AQE2
Manufacturer C&K Components
Catalog Slide Switches
Description Miniature Slide Switches | SWITCH SLIDE DPDT 6A 120V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K
Packaging Tray
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 6A (AC/DC)
Voltage Rating - AC 120V
Voltage Rating - DC 28V
Actuator Type Standard
Actuator Length 4.72mm
Contact Material Copper
Contact Finish Silver
Mounting Style Through Hole, Right Angle
Termination Style PC Pin
Features Black Actuator, Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 2.16mm
Electrical Life 40,000 Cycles
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1121138-1201M2S3AQE2
Manufacturer Homepage www.ittcannon.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1201M2S3AQE2 CAD Model

Description

The 1201M2S3AQE2 is a DPDT switch manufactured by C&K.

  • Product Name: 1201M2S3AQE2
  • Type: DPDT Switch
  • Manufacturer: C&K
  • Voltage Rating: 120V AC, 28V DC
  • Actuator Color: Black
  • Terminal Seal: Epoxy Sealed
  • Contact Finish: Silver
  • Mechanical Life: 40,000 cycles
  • Operating Temperature: -30°C to 65°C
  • Mounting: Through Hole
  • Termination Style: Right Angle
