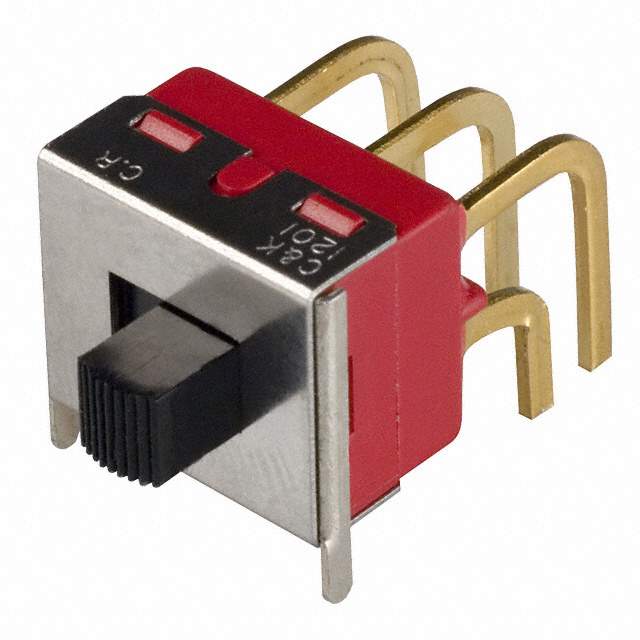

1201M2S3ABE2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 9 Weeks
Features Slide Switch DPDT Through Hole, Right Angle
Manufacturer C&K Components
Series 1000
Package Bulk
Operating Temperature Range -30°C ~ 65°C
Mounting Through Hole, Right Angle
Family Name 1201M2S3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Part Number *1201M2S3ABE2, 1201M2S3ABE2-ND, 2266-1201M2S3ABE2, CKN5053
Quantity per package 80
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905155-1201M2S3ABE2
Ultra Librarian 3D Model Ultra Librarian 1201M2S3ABE2 CAD Model

Description

The C&K Components 905155-1201M2S3ABE2 is a DPDT slide switch with through-hole, right-angle mounting.

  • Series: 1000
  • Operating Temperature: -30°C to 65°C
  • Suitable for Use In: Switches
  • Packaging: Bulk
  • Popularity: High
  • Supply and Demand Status: Balanced
  • ECCN: EAR99
  • REACH: Unaffected by REACH regulations
