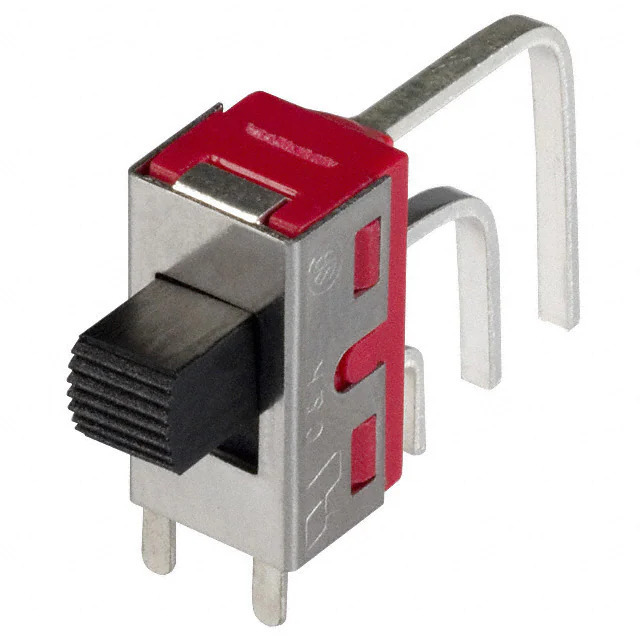

1101M2S3AV2QE2 C&K Components
Same model may have multiple batches, images only for reference.

1101M2S3AV2QE2

Part No 1101M2S3AV2QE2
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SPDT 6A 120V
Datasheet
1101M2S3AV2QE2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr C&K
Series 1000
Package Tray
Product Status Active
Circuit SPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 6A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Standard
Actuator Length 4.72mm
Contact Material Copper
Contact Finish Silver
Mounting Type Through Hole, Right Angle, Vertical
Termination Style PC Pin
Features Black Actuator, Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 2.16mm
Mechanical Life -
Electrical Life 40,000 Cycles
Operating Force -
Base Product Number 1101M2S3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376315-1101M2S3AV2QE2
Ultra Librarian 3D Model Ultra Librarian 1101M2S3AV2QE2 CAD Model

Description

The 1101M2S3AV2QE2 is a slide switch from C&K's 1000 series.

  • Temperature Range: -30°C to 65°C
  • Mounting Type: Through-Hole, Right-Angle, and Vertical
  • Current Rating: 6A (AC/DC)
  • Voltage Rating (AC): 120V (AC)
  • Voltage Rating (DC): 28V (DC)
  • Circuit: SPDT
  • Switch Function: On-On
  • Mechanical Life: 40,000 cycles
  • Switch Travel: 2.16mm
  • Actuator Material: Polyamide (PA) and Nylon
