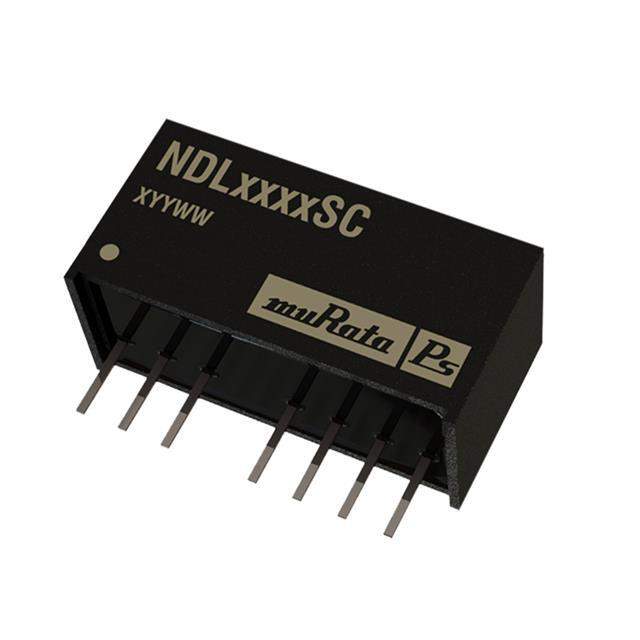

The NDL0505S is a DC-DC converter module manufactured by C&D Technologies (now Murata Power Solutions). It is designed to convert a DC voltage to another DC voltage, providing isolation between the input and output. This converter is typically used in applications requiring galvanic isolation for safety or noise reduction purposes.

Applications

• Isolated power supplies
• Industrial control systems
• Medical equipment
• Data acquisition systems
• Telecommunications equipment
• Instrumentation

Features

• Isolated DC-DC Converter: Provides galvanic isolation between input and output.
• Fixed Input and Output Voltage: Designed for specific input and output voltage requirements (5V to 5V in this case).
• Compact Size: Small form factor for space-constrained applications.
• High Efficiency: Minimizes power loss and heat generation.
• Short Circuit Protection: Protects the converter from damage due to short circuits.
• Overload Protection: Prevents damage due to excessive output current.
• Wide Operating Temperature Range: Designed for operation in a wide range of environmental conditions.

Benefits

• Galvanic Isolation: Provides safety and noise reduction.
• Reliable Power Conversion: Delivers a stable and accurate output voltage.
• Protection Features: Enhances system reliability and prevents damage from fault conditions.
• Easy to Use: Simple to integrate into existing systems.
• Compact Size: Suitable for space-constrained applications.

Additional Details

The NDL0505S is typically packaged in a SIP (Single In-Line Package) or DIP (Dual In-Line Package) for easy mounting and soldering. It requires minimal external components for operation. The isolation voltage is typically several kilovolts, providing a high level of safety. The datasheet specifies the input voltage range, output voltage accuracy, output current capability, isolation voltage, and operating temperature range.

When using the NDL0505S, it's important to ensure that the input voltage is within the specified range and that the output current does not exceed the maximum rating. Proper grounding and decoupling techniques are recommended to minimize noise and ensure stable operation. Detailed application notes and design guidelines are available from Murata Power Solutions to assist with the design and implementation of NDL0505S-based power supplies.
