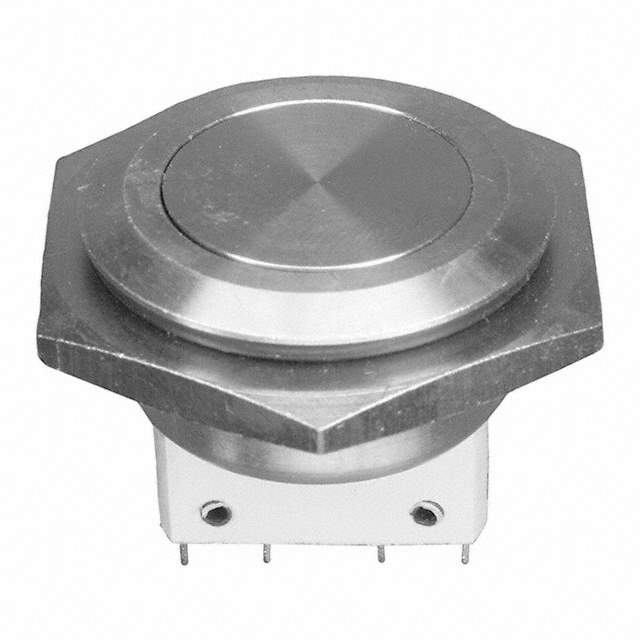

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr Bulgin
Package Tray
Mounting Type Panel Mount, Front
Type Anti-Vandal
Circuit DPST-NO/NC
Switch Function On-Mom, Off-Mom
Current Rating (Amps) 5A (AC) , 2A (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 28 V
Actuator Type Round, Button, Flush
Actuator Marking No Marking
Color - Actuator/Cap Silver
Termination Style Solder Lug
Ingress Protection IP66 - Dust Tight, Water Resistant
Panel Cutout Dimensions Circular - 25.80mm Dia
Temperature Range - Operating -20°C ~ 70°C
Mechanical Life 1,000,000 Cycles
Electrical Life 35,000 Cycles
Standard Package 50
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1349512-MP0038
Ultra Librarian 3D Model Ultra Librarian MP0038 CAD Model

Description

The anti-vandal pushbutton switch from Bulgin is a panel mount, front type switch.

  • Panel Cutout: 25.80mm Dia.
  • Circuit: DPST-NO/NC
  • Switch Function: On-Mom, Off-Mom
  • Actuator Type: Round, Button, Flush
  • Actuator Color: Silver
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 35,000 cycles
  • Current Rating: 5A (AC), 2A (DC)
  • Voltage Rating: 250VAC (AC), 28V (DC)
  • Ingress Protection: IP66
  • Temperature Range: -20°C to 70°C
  • Package: Tray
  • Standard Package: 50
