Same model may have multiple batches, images only for reference.

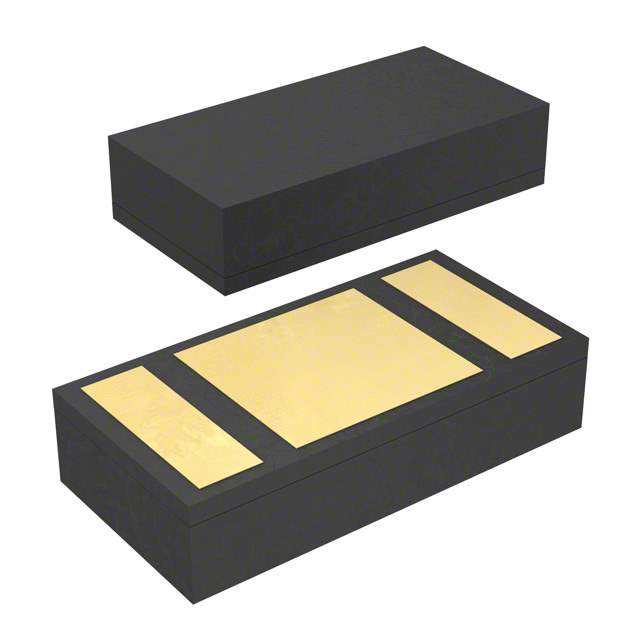

VMMK-2203-BLKG Real Image
Same model may have multiple batches, images only for reference.

VMMK-2203-BLKG

Part No VMMK-2203-BLKG
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description AMP RFIC LNA E-PHEMT 10GHZ 0402 / RF Amp Single Wideband Amp 11GHz 8V 3-Pin WLP Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Cut Strip
Part Status Obsolete(EOL)
Frequency 900MHz ~ 11GHz
P1dB 5dBm (3.2mW)
Gain 16.5dB
Noise Figure 2dB
RF Type General
Operating Supply Voltage 5V
Operating Supply Current 25mA
Test Frequency 6GHz
Package 0402 (1005 Metric)
Win Source Part Number 799117-VMMK-2203-BLKG
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name VMMK-2203
Introduction Date December 01, 2008
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian VMMK-2203-BLKG CAD Model

Description

The Broadcom Limited VMMK-2203 RF Amplifier is manufactured by Broadcom Limited.

  • Category: RF/IF and RFID
  • Win Source Part Number: 799117-VMMK-2203-BLKG
  • Packaging: Cut Strip
  • Package: 0402 (1005 Metric)
  • Test Frequency: 6GHz
  • Frequency: 900MHz ~ 11GHz
  • Operating Supply Voltage: 5V
  • Gain: 16.5dB
  • Noise Figure: 2dB
  • P1dB: 5dBm (3.2mW)
  • Type: General RF
  • Status: Obsolete (EOL)
  • Family Name: VMMK-2203
  • Operating Supply Current: 25mA
  • Introduction Date: December 01, 2008
  • ECCN: EAR99
  • Country of Origin: Malaysia
  • Quantity Per Package: 100
  • Alternative Parts: Available
