Same model may have multiple batches, images only for reference.

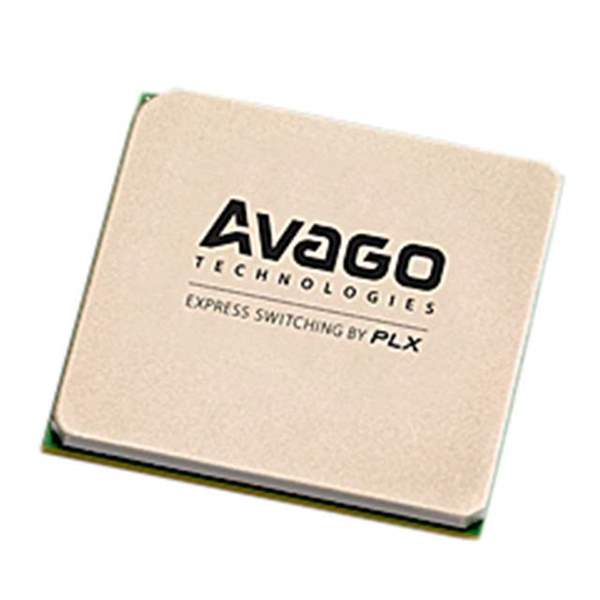

PEX8649-AA50RBC G Real Image
Same model may have multiple batches, images only for reference.

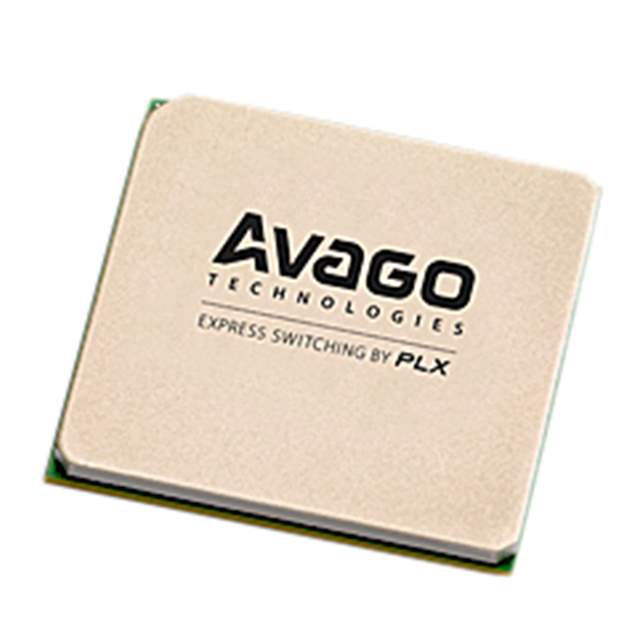

PEX8649-AA50RBC G

Part No PEX8649-AA50RBC G
Manufacturer Broadcom Limited
Catalog Interface - Analog Switches - Special Purpose
Description IC PCI EXPRESS SWITCH 676FCBGA / PCI Express® Switch IC Channel 676-FCBGA (27x27)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Interface - Analog Switches - Special Purpose
Mfr Broadcom Limited
Series ExpressLane™
Package Tray
Applications PCI Express®
Features Configurable
Mounting SMD (SMT)
Supplier Device Package 676-FCBGA (27x27)
Base Product Number PEX8649
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN 5A991B1
HTSUS 8542.39.0001
Other Names PEX8649-AA50RBC G-ND,PEX8649-AA50RBCG
Standard Package 200
Win Source Part Number 976809-PEX8649-AA50RBC G
Ultra Librarian 3D Model Ultra Librarian PEX8649-AA50RBC G CAD Model

Description

The PEX8649-AA50RBC G is an ExpressLane™ Configurable Switch from Broadcom Limited.

  • Category: integrated circuits (ICs)
  • Application: PCI Express®
  • Circuit: switch
  • On-State Resistance (max): N/A
  • -3db Bandwidth: N/A
  • Voltage Supply: single (V+)
  • Voltage Supply Dual (V±): N/A
  • Multiplexer/Demultiplexer Circuit: Yes
  • Package/Case: 676-FCBGA (27x27)
  • Operating Temperature Range: Not Specified
  • REACH: unaffected
  • MSL Level: 4 (72 Hours)
  • RoHS Compliant: No
