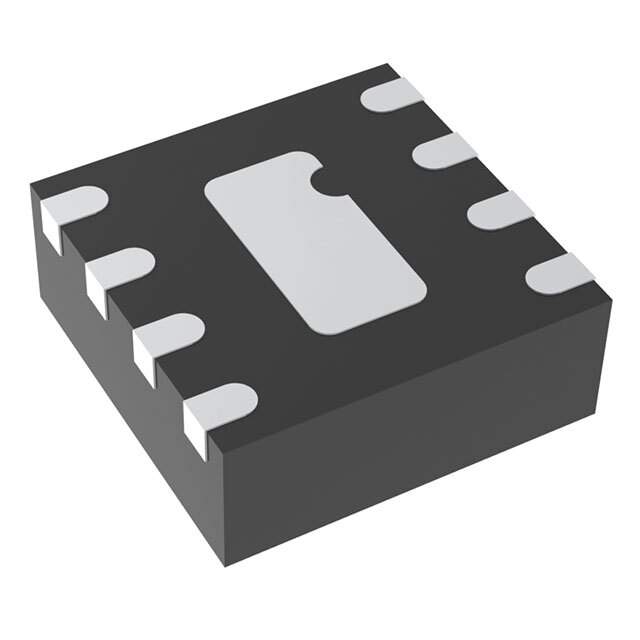

Same model may have multiple batches, images only for reference.

MGA-637P8-TR1G

Name: MGA-637P8-TR1G
Brand: Broadcom Limited
SKU: 639176
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MGA-637P8-TR1G
Manufacturer	Broadcom Limited
Catalog	RF Amplifiers
Description	RF Amp Single LNA 2.5GHz 5.5V 8-Pin DFN EP T/R / High Linearity Low Noise Amplifi er \| IC AMP CDMA 450MHZ-1.5GHZ 8DFN
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	RF/IF and RFID
Manufacturer	Broadcom Limited
Packaging	Tape and Reel
Status	Obsolete
Frequency	450MHz ~ 1.5GHz
P1dB	21.9dBm
Gain	17.3dB
Noise Figure	0.52dB
RF Type	CDMA, GSM, TDMA, WCDMA
Supply Current	75mA
Test Frequency	1.7GHz
Manufacturer Package	8-WFDFN Exposed Pad
Supplier Device Package	8-DFN (2x2)
Manufacturer Pack Quantity	3,000
MSL Level	1 (Unlimited)
Win Source Part Number	1221864-MGA-637P8-TR1G
Manufacturer Homepage	www.avagotech.com
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Family Name	MGA-637P8
Introduction Date	May 20, 2011
ECCN	5A991.g
Country of Origin	Malaysia
Halogen Free	Compliant
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian MGA-637P8-TR1G CAD Model

Alternative Products

Description

This electronic component is a product of Broadcom Limited with a Win Source Part Number of 1221864-MGA-637P8-TR1G.

Package: tape and reel
Test Frequency: 1.7GHz
Frequency Range: 450MHz ~ 1.5GHz
Gain: 17.3dB
Supply Current: 75mA
Noise Figure: 0.52dB
P1dB: 21.9dBm
RF Type: CDMA, GSM, TDMA, WCDMA
Family Name: MGA-637P8
Category: RF/IF and RFID
Supplier Device Package: 8-DFN (2x2)
Status: obsolete
Introduction Date: May 20, 2011
ECCN: 5A991.g
Country of Origin: Malaysia
Estimated EOL Date: obsolete / end of life
Halogen-Free: compliant
Usage: common-used part
Supply and Demand Status: limited
Manufacturer Pack Quantity: 3,000
MSL Level: 1 (Unlimited)
Supply Voltage (V): -
