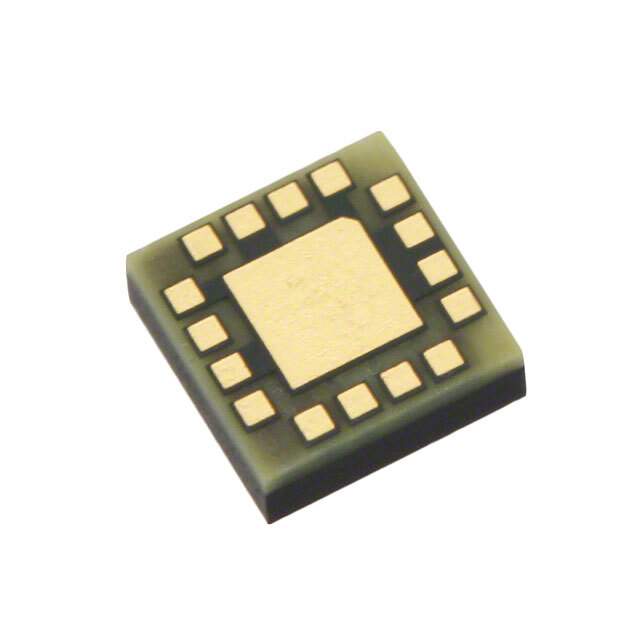

MGA-23003-BLKG Real Image
Same model may have multiple batches, images only for reference.

MGA-23003-BLKG

Part No MGA-23003-BLKG
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description 3.3-3.8 GHz WiMAX Power Amplifi er (3x3mm) | IC AMP 802.16 WIMAX 3.3-3.8GHZ
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Strip
Status Obsolete
Frequency 3.3GHz ~ 3.8GHz
P1dB 31dBm
Gain 35dB
RF Type 802.16 WiMAX
Supply Voltage (V) 3V ~ 5V
Test Frequency 3.55GHz
Manufacturer Package 17-LCC
Manufacturer Pack Quantity 100
MSL Level 3 (168 Hours)
Win Source Part Number 1221823-MGA-23003-BLKG
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MGA-23003-BLKG CAD Model

Description

The MGA-23003-BLKG is a high-gain, low-noise amplifier designed for use in WiMAX and WLAN applications. It is manufactured by Broadcom Limited and has an obsolete status.

  • Win Source Part Number: 1221823-MGA-23003-BLKG
  • Popularity: medium
  • Supply and Demand Status: limited
  • Device Package: 17-LCC
  • Test Frequency: 3.55GHz
  • Gain: 35dB
  • P1dB: 31dBm
  • RF Type: 802.16 WiMAX
  • Supply Voltage: 3V to 5V
