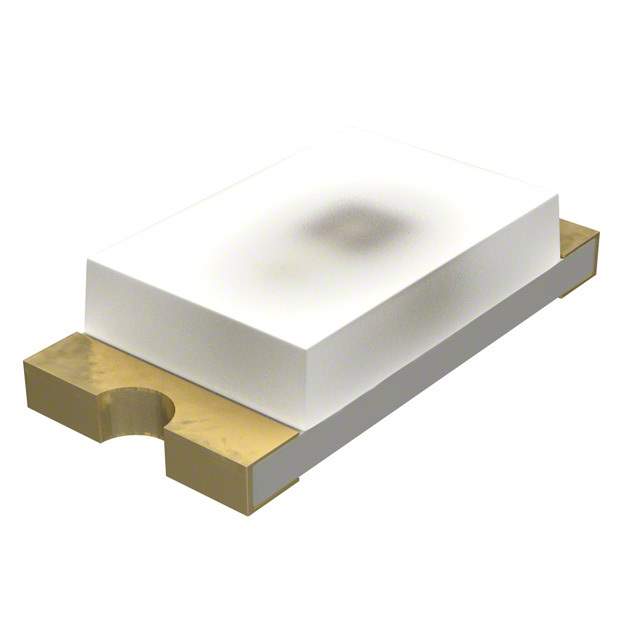

HSMZ-C170 Real Image
Same model may have multiple batches, images only for reference.

HSMZ-C170

Part No HSMZ-C170
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RED DIFFUSED 0805 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Red
Lens Color White
Lens Transparency Diffused
Millicandela Rating 165mcd
Lens Style/Size Rectangle with Flat Top, 1.40mm x 1.25mm
Forward Voltage 2.2V
Current - Test 20mA
Viewing Angle 170°
Mounting SMD (SMT)
Wavelength - Dominant 631nm
Wavelength - Peak 643nm
Case / Package Chip LED
Height (Max) 0.80mm
Win Source Part Number 1044131-HSMZ-C170
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian HSMZ-C170 CAD Model

Description

The Broadcom HSMZ-C170 is a chip LED.

  • Millicandela Rating: 165mcd
  • Viewing Angle: 170°
  • Forward Voltage: 2.2V
  • Current Test: 20mA
  • Wavelength-Dominant: 631nm
  • Wavelength-Peak: 643nm
  • Lens Style/Size: Rectangle with a flat top, measuring 1.40mm x 1.25mm
  • Lens Color: White with diffused transparency
  • Supply and Demand Status: Balanced
