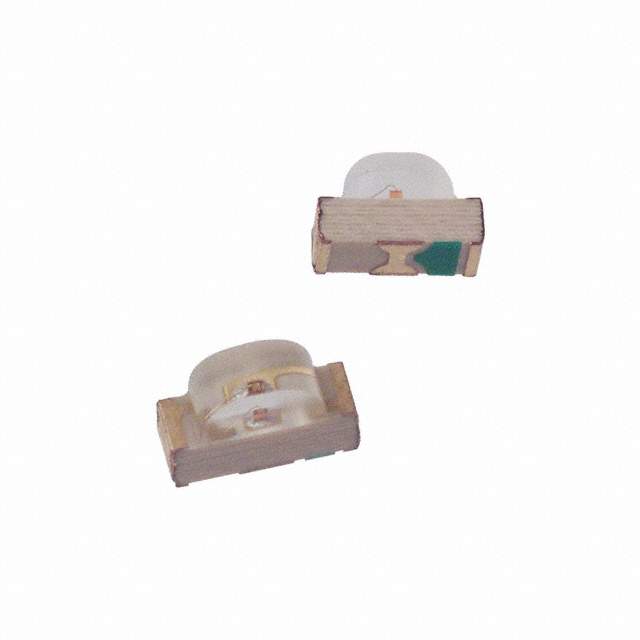

HSMG-C680 Real Image
Same model may have multiple batches, images only for reference.

HSMG-C680

Part No HSMG-C680
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GREEN CLEAR 2SMD R/A / LED Uni-Color Green 568nm 2-Pin Chip LED T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel package
Color Green
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 13.3mcd
Lens Style/Size Rectangle with Domed Top, 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Viewing Angle 125°
Mounting Surface Mount, Right Angle
Wavelength - Dominant 573nm
Wavelength - Peak 568nm
Package 2-SMD, No Lead
Manufacturer Package Chip LED
Dimension 3.00mm L x 1.00mm W
Height (Maximum) 1.00mm
Win Source Part Number 776203-HSMG-C680
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name HSMG-C680
Introduction Date January 15, 2007
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian HSMG-C680 CAD Model

Description

The Broadcom Limited 776203-HSMG-C680 is a limited supply electronic component that is designed for use in optoelectronics.

  • Color: Green
  • Package: 2-SMD, no lead
  • Mounting Style: Right Angle Surface Mount
  • Viewing Angle: 125 degrees
  • Millicandela Rating: 13.3mcd
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Quantity: 3k pcs per package
