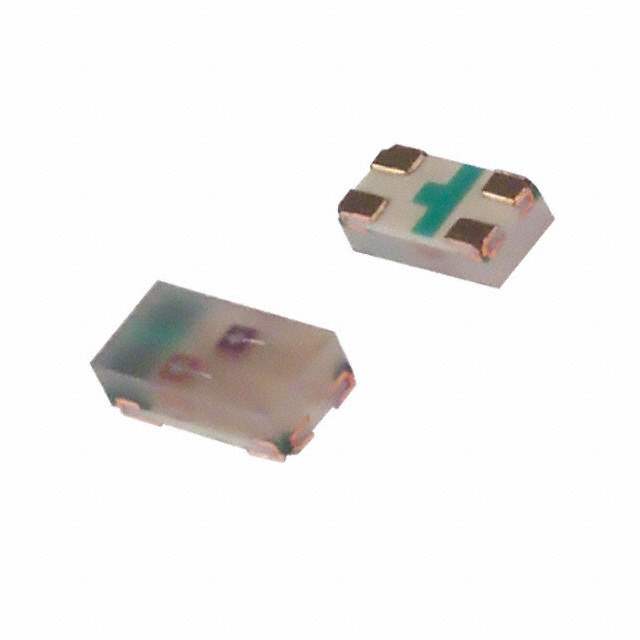

HSMF-C166 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Green, Yellow
Configuration Independent
Lens Color White
Lens Transparency Diffused
Millicandela Rating 15mcd Green, 8mcd Yellow
Lens Style/Size Rectangle with Flat Top, 1.60mm x 0.80mm
Forward Voltage 2.2V Green, 2.1V Yellow
Current - Test 20mA Green, 20mA Yellow
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 572nm Green, 586nm Yellow
Wavelength - Peak 570nm Green, 589nm Yellow
Case / Package 0603
Height (Max) 0.50mm
Win Source Part Number 068214-HSMF-C166
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian HSMF-C166 CAD Model

Description

The 068214-HSMF-C166 is a high popularity electronic component manufactured by Broadcom Limited. It comes in a 0603 packaging and is suitable for various optoelectronic applications. The forward voltage of this component is 2.2V for green and 2.1V for yellow. The viewing angle is 120 degrees, and the lens color is white. The lens transparency is diffused, and the millicandela rating is 15mcd for green and 8mcd for yellow. It is a common-used part that is halogen-free and compliant.
