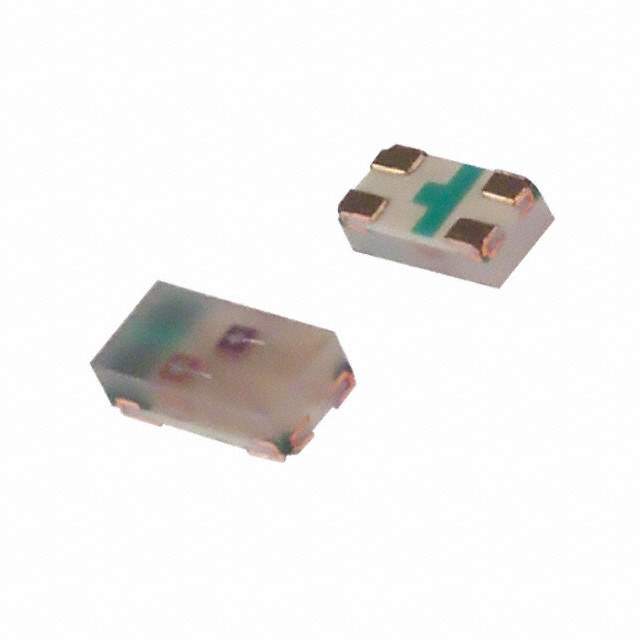

The HSMF-C164 is a rectangular SMD LED with a flat top lens and is made by Broadcom Limited.

• Colors: Blue and Red
• Forward Voltage (Blue): 3.4V
• Forward Voltage (Red): 1.9V
• Viewing Angle: 120 degrees
• Lens Color: White with diffused transparency
• Millicandela Rating (Blue): 10mcd
• Millicandela Rating (Red): 90mcd
• Lens Size: 1.60mm x 0.80mm
• Current Test (Both Colors): 20mA
• Dominant Wavelength (Blue): 470nm
• Dominant Wavelength (Red): 626nm
• Peak Wavelength (Blue): 468nm
• Peak Wavelength (Red): 637nm
• Family: HSMF-C164
• Category: Optoelectronics
• Package: 0603
• Introduction Date: January 01, 2002
• Halogen-Free: Yes
• Compliant: Yes
• Estimated EOL Date: 2026
• Supply and Demand Status: Balanced
• Package Quantity: 4k pieces
