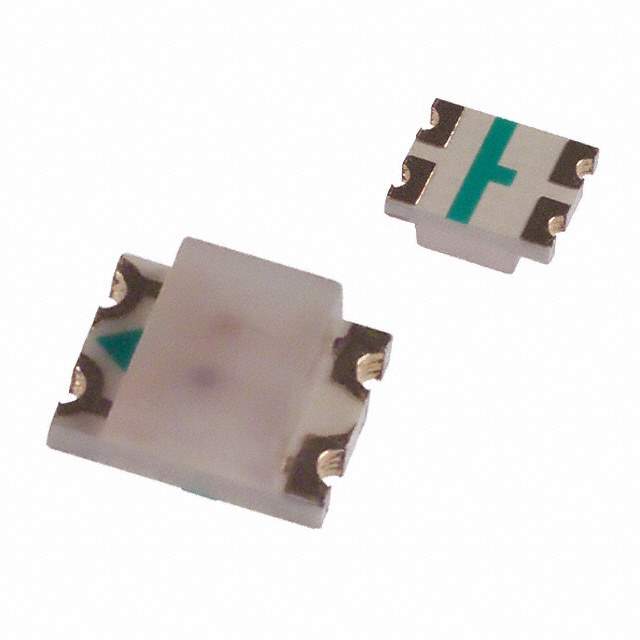

HSMF-C156 Real Image
Same model may have multiple batches, images only for reference.

HSMF-C156

Part No HSMF-C156
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GREEN/YLW DIFFUSED 1210 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Green, Yellow
Configuration Independent
Lens Color White
Lens Transparency Diffused
Millicandela Rating 15mcd Green, 8mcd Yellow
Lens Style/Size Rectangle with Flat Top, 2.06mm x 2.70mm
Forward Voltage 2.2V Green, 2.1V Yellow
Current - Test 20mA Green, 20mA Yellow
Viewing Angle 170°
Mounting SMD (SMT)
Wavelength - Dominant 572nm Green, 586nm Yellow
Wavelength - Peak 570nm Green, 589nm Yellow
Case / Package Chip LED
Height (Max) 1.10mm
Win Source Part Number 1044004-HSMF-C156
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian HSMF-C156 CAD Model

Description

The HSMF-C156 is a chip light-emitting diode (LED) that comes in a reel package with a maximum height of 1.10mm from Broadcom Limited.

  • Shape: rectangular
  • Lens Size: 2.06mm x 2.70mm
  • Color: green and yellow
  • Forward Voltage: 2.2V for green and 2.1V for yellow
  • Viewing Angle: 170 degrees
  • Lens Transparency: diffused
  • Millicandela Rating: 15mcd for green and 8mcd for yellow
  • Current Test: 20mA for both colors
  • Dominant Wavelength: 572nm for green and 586nm for yellow
  • Peak Wavelength: 570nm for green and 589nm for yellow
  • Status: active
  • Popularity: medium
