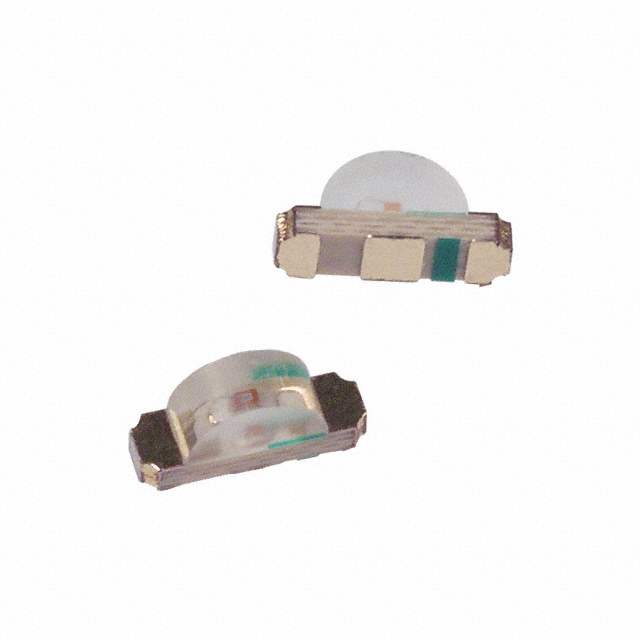

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Amber
Lens Color White
Lens Transparency Diffused
Millicandela Rating 95mcd
Lens Style/Size Rectangle with Domed Top, 2.60mm x 1.00mm
Forward Voltage 1.9V
Current - Test 20mA
Viewing Angle 130°
Mounting Surface Mount, Right Angle
Wavelength - Dominant 592nm
Wavelength - Peak 595nm
Case / Package Chip LED
Height (Max) 1.00mm
Win Source Part Number 107417-HSMA-C110
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian HSMA-C110 CAD Model

Description

The HSMA-C110 from Broadcom Limited is a surface mount, right angle chip LED. It has a millicandela rating of 95mcd and a dominant wavelength of 592nm. The lens style and size is a rectangle with a domed top, measuring 2.60mm x 1.00mm. The forward voltage is 1.9V, and the viewing angle is 130°. The lens color is white and has a diffused transparency. The supply and demand status of this product is balanced, and a package of 3k pcs is available.
