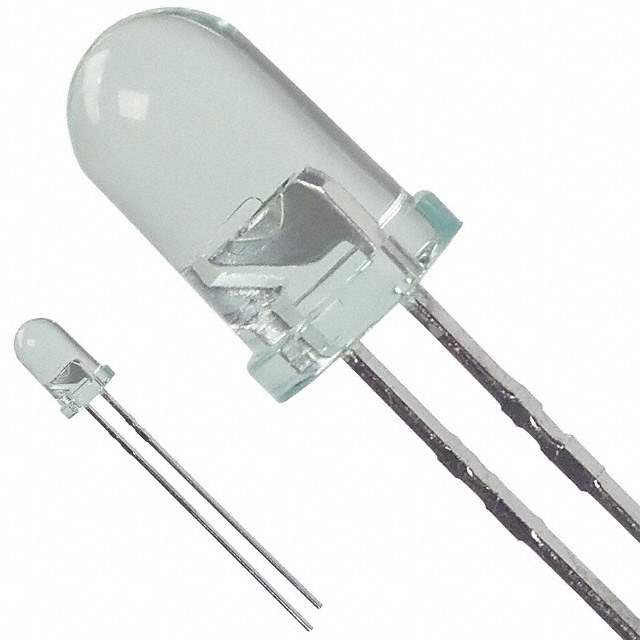

HLMP-C515

Part No HLMP-C515
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GREEN CLEAR T-1 3/4 T/H / Green 570nm LED Indication - Discrete 2.2V Radial
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Broadcom Limited
Package Bulk
Color Green
Configuration Standard
Lens Color Green
Lens Transparency Clear
Millicandela Rating 300mcd
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Viewing Angle 15°
Mounting Type Through Hole
Wavelength - Dominant 570nm
Wavelength - Peak 568nm
Package / Case Radial
Supplier Device Package T-1 3/4
Height (Max) 8.91mm
Base Product Number HLMP-C515
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-1354,HLMPC515,516-1354-NDR
Standard Package 2,000
Win Source Part Number 1062963-HLMP-C515
Ultra Librarian 3D Model Ultra Librarian HLMP-C515 CAD Model

Description

The HLMP-C515 is a through-hole LED indication discrete component from Broadcom Limited. This green LED has a viewing angle of 15 degrees and a millicandela rating of 300 mcd. The voltage required for the forward current is 2.2V and the wavelength of the dominant and peak is 570nm and 568nm respectively. The LED comes in a radial package with a round domed top lens style, which is 5mm in size. The package is bulk and the standard package contains 2000 units. The HLMP-C515 is ideal for use in optoelectronics and electronic circuit applications.

  • Mounting Type: Through-Hole
  • LED Color: Green
  • Viewing Angle: 15 degrees
  • Millicandela Rating: 300 mcd
  • Voltage Forward Current: 2.2V
  • Wavelength Dominant: 570nm
  • Wavelength Peak: 568nm
  • Package/Case: Radial
  • Lens Style: Round Domed Top
  • Lens Size: 5mm
  • Package: Bulk
  • Standard Package: 2000 Units
