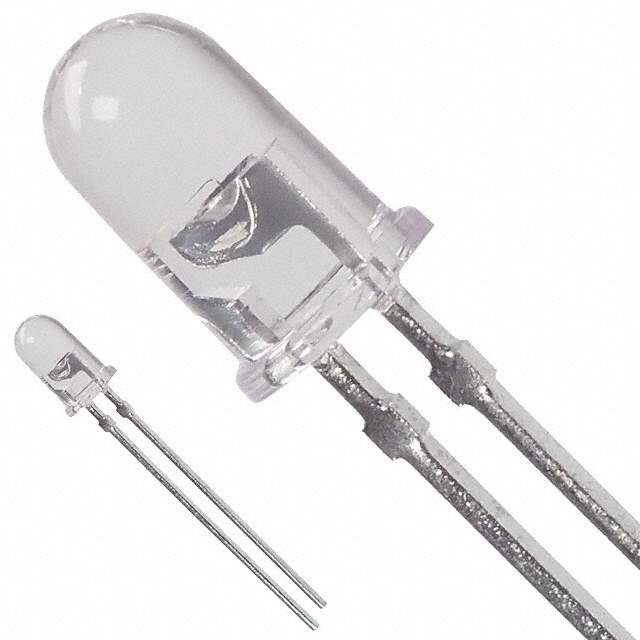

HLMP-3750 Real Image
Same model may have multiple batches, images only for reference.

HLMP-3750

Part No HLMP-3750
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RED CLEAR T-1 3/4 T/H / Red 626nm LED Indication - Discrete 1.9V Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Broadcom Limited
Package Bulk
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 125mcd
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) 1.9V
Current - Test 20mA
Viewing Angle 24°
Mounting Type Through Hole
Wavelength - Dominant 626nm
Wavelength - Peak 635nm
Package / Case Radial
Supplier Device Package T-1 3/4
Height (Max) 12.44mm
Base Product Number HLMP-3750
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-1345,516-1345-NDR
Standard Package 2,000
Win Source Part Number 1126790-HLMP-3750
Ultra Librarian 3D Model Ultra Librarian HLMP-3750 CAD Model

Description

The HLMP-3750 is a red LED indication device that is discrete.

  • Viewing Angle: 24°
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Millicandela Rating: 125mcd
  • Voltage Forward (Vf) (Typ): 1.9V
  • Current Test: 20mA
  • Wavelength Dominant: 626nm
  • Wavelength Peak: 635nm
  • Height (Max): 12.44mm
  • Mounting Type: Through Hole
  • Supplier Device Package: T-1 3/4
