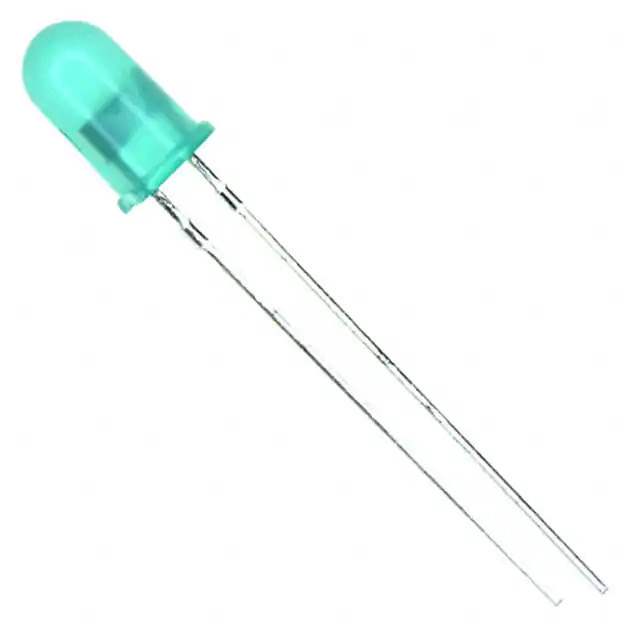

HLMP-4740-A0002 Real Image
Same model may have multiple batches, images only for reference.

HLMP-4740-A0002

Part No HLMP-4740-A0002
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GREEN DIFFUSED T-1 3/4 T/H
Datasheet
HLMP-4740-A0002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Broadcom Limited
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Color Green
Configuration Standard
Lens Color Green
Lens Transparency Diffused
Millicandela Rating 2.3mcd
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) 1.9V
Current - Test 2mA
Viewing Angle 50°
Mounting Type Through Hole
Wavelength - Dominant 569nm
Wavelength - Peak 565nm
Package / Case Radial
Supplier Device Package T-1 3/4
Height (Max) 9.19mm
Base Product Number HLMP-4740
Standard Package 1,300 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 746026-HLMP-4740-A0002
Ultra Librarian 3D Model Ultra Librarian HLMP-4740-A0002 CAD Model

Description

The Broadcom Limited HLMP-4740-A0002 is an active LED indication discrete component manufactured by Broadcom Limited.

  • Package: Tape & reel (TR) or cut tape (CT)
  • Package Quantity: 1,300 pieces
  • Viewing Angle: 50 degrees
  • Lens Color: Green
  • Forward Voltage (Vf): 1.9V
  • Current Test: 2mA
  • Dominant Wavelength: 569nm
  • Peak Wavelength: 565nm
  • MSL Level: 1 (unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8541.41.0000
  • Base Product Number: HLMP-4740
