Same model may have multiple batches, images only for reference.

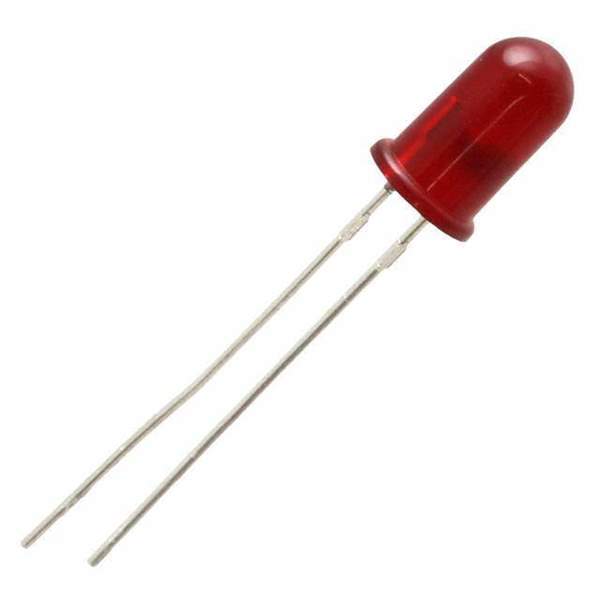

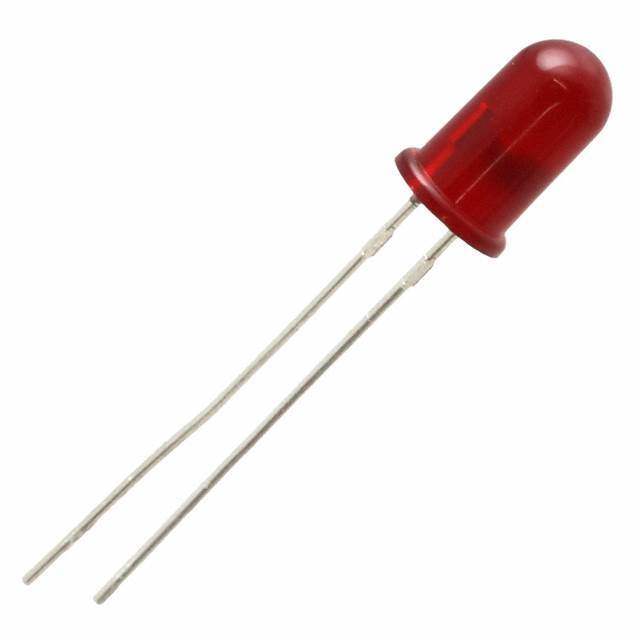

HLMP-3301-D0002 Real Image
Same model may have multiple batches, images only for reference.

HLMP-3301-D0002

Part No HLMP-3301-D0002
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RED DIFF 5MM ROUND T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Red
Lens Color Red
Lens Transparency Diffused
Millicandela Rating 2.1mcd
Lens Style/Size Round with Domed Top, 5mm (T-1 3/4), 4.83mm
Forward Voltage 1.9V
Current - Test 10mA
Viewing Angle 60°
Mounting Through Hole
Wavelength - Dominant 626nm
Wavelength - Peak 635nm
Case / Package T-1 3/4
Height (Max) 9.19mm
Win Source Part Number 016989-HLMP-3301-D0002
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 1,300
Ultra Librarian 3D Model Ultra Librarian HLMP-3301-D0002 CAD Model

Description

The Broadcom Limited 016989-HLMP-3301-D0002 is a red LED with a diffused lens and a round shape.

  • Viewing Angle: 60 degrees
  • Millicandela Rating: 2.1mcd
  • Lens Size: 5mm (T-1 3/4) with a domed top and a height of 9.19mm
  • Forward Voltage: 1.9V
  • Wavelength Dominant: 626nm
  • Wavelength Peak: 635nm
  • Current Test: 10mA
  • Case: T-1 3/4
  • Quantity per Package: 1,300
