Same model may have multiple batches, images only for reference.

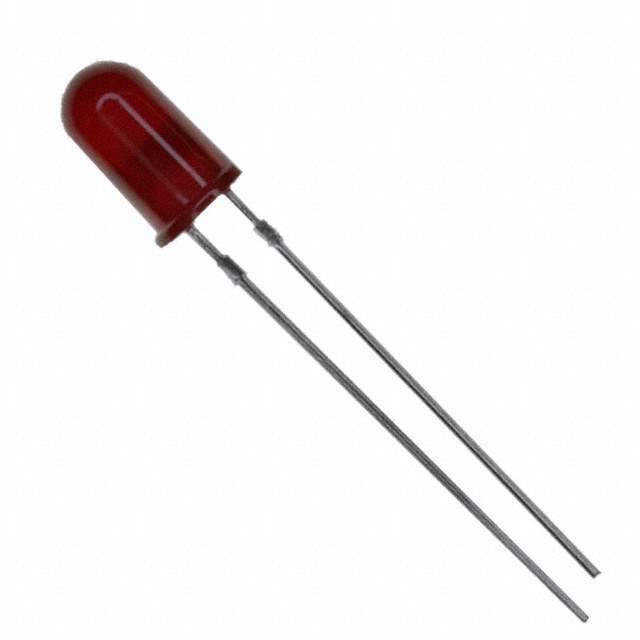

HLMP-3301-D0000 Real Image
Same model may have multiple batches, images only for reference.

HLMP-3301-D0000

Part No HLMP-3301-D0000
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RED DIFFUSED T-1 3/4 T/H / Red 626nm LED Indication - Discrete 1.9V Radial
Datasheet
HLMP-3301-D0000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Manufacturer Broadcom Limited
Packaging Bulk
Color Red
Configuration Standard
Lens Color Red
Lens Transparency Diffused
Millicandela Rating 2.1mcd
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) 1.9V
Current - Test 10mA
Viewing Angle 60°
Mounting Through Hole
Wavelength - Dominant 626nm
Wavelength - Peak 635nm
Case / Package Radial
Supplier Device Package T-1 3/4
Height (Max) 9.19mm
Base Product Number HLMP-3301
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number HLMP-3301-D0000-ND,HLMP3301D0000,516-1760
Standard Package 2,000
Win Source Part Number 1331788-HLMP-3301-D0000
Ultra Librarian 3D Model Ultra Librarian HLMP-3301-D0000 CAD Model

Description

The HLMP-3301-D0000 is an LED indication discrete optoelectronics product from Broadcom Limited.

  • ROHS3 Compliant: Yes
  • Packaging: Bulk
  • Standard Package: 2,000 units
  • Base Product Number: HLMP-3301
  • REACH: Unaffected
  • MSL Level: 1 (Unlimited)
  • Viewing Angle: 60 degrees
  • Millicandela Rating: 2.1mcd
  • Voltage-Forward: 1.9V
  • Current-Test: 10mA
