Same model may have multiple batches, images only for reference.

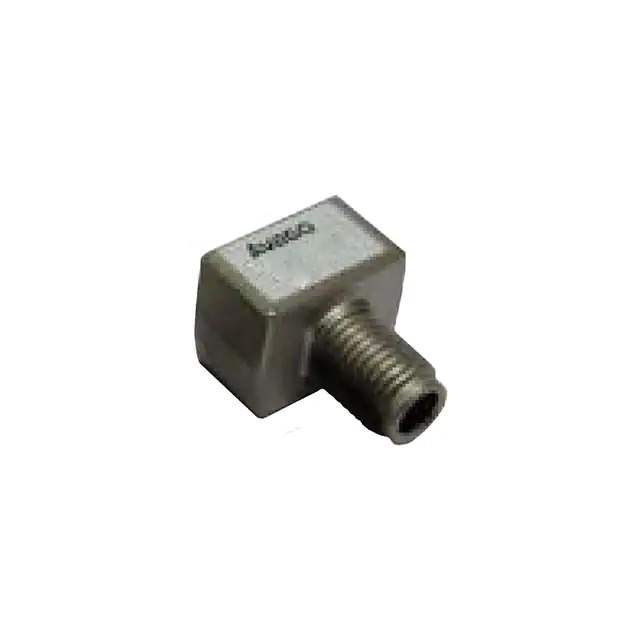

HFBR-1505AFZ Real Image
Same model may have multiple batches, images only for reference.

HFBR-1505AFZ

Part No HFBR-1505AFZ
Manufacturer Broadcom Limited
Catalog Fiber Optics - Transmitters - Discrete
Description XMITTER FIBER OPTIC SERCOS SMA / Fiber Optic Transmitter 650nm 2.1V 60 mA SMA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Fiber Optic Transmitters - Discrete
Mfr Broadcom Limited
Package Bulk
Product Status Active
Wavelength 650nm
Spectral Bandwidth 21nm
Voltage - Forward (Vf) (Typ) 2.1V
Current - DC Forward (If) (Max) 60 mA
Voltage - DC Reverse (Vr) (Max) 3 V
Capacitance 60 pF
Connector Type SMA
Base Product Number HFBR-1505
Standard Package 100 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A991B4A
HTSUS 8517.62.0090
Win Source Part Number 920193-HFBR-1505AFZ
Ultra Librarian 3D Model Ultra Librarian HFBR-1505AFZ CAD Model

Description

The HFBR-1505AFZ is a fiber optic transmitter from Broadcom Limited.

  • Category: Optoelectronics - Fiber Optic Transmitters
  • Wavelength: 650nm
  • Spectral Bandwidth: 21nm
  • Voltage - Forward (Vf): 2.1V
  • Current - DC Forward (If): 60mA
  • Connector Type: SMA
  • Capacitance: 60pF
  • Voltage - DC Reverse (Vr): 3V
  • Packaging: Bulk
  • Standard Package: 100 pieces
  • Product Status: Active
