Part No HEDS-9731#B50
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER SMALL 2CH 1000CPR STD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Status Active
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 1000
Supply Voltage - Operating 3.3VDC
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation Right Angle
Termination Style Terminal Pins
Win Source Part Number 144533-HEDS-9731#B50
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian HEDS-9731#B50 CAD Model

Description

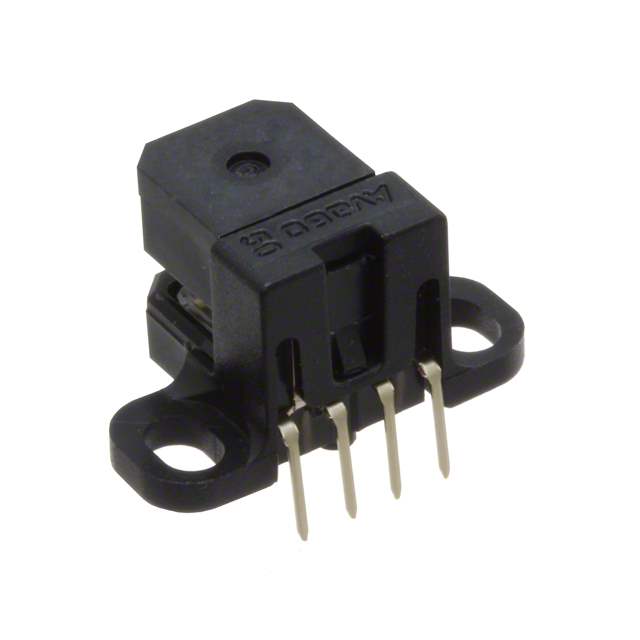

The Broadcom Limited HEDS-9731#B50 is an optical encoder.

  • Termination Style: Right-angle
  • Mounting: Chassis mount
  • Output Type: Quadrature (incremental)
  • Actuator Type: Codewheel not included
  • Switch: No built-in switch
  • Package Quantity: 50
