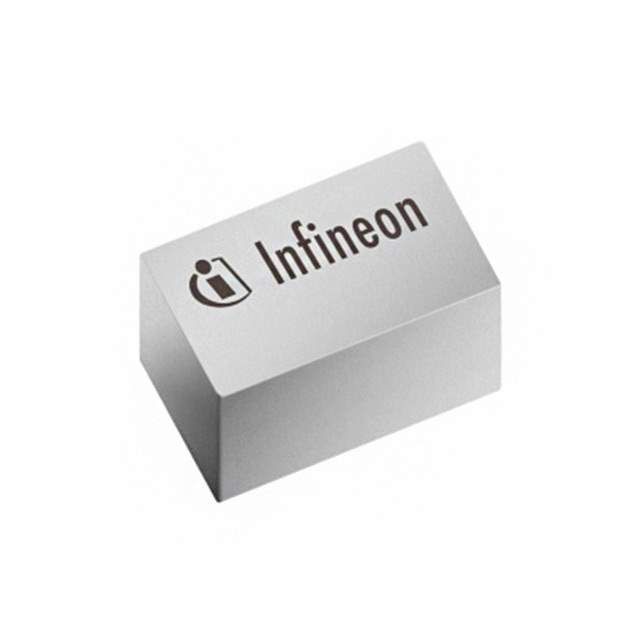

ESD239B1W0201E6327XTSA1 Real Image1 ESD239B1W0201E6327XTSA1 Real Image2
Same model may have multiple batches, images only for reference.
ESD239B1W0201E6327XTSA1 Real Image1 ESD239B1W0201E6327XTSA1 Real Image2
ESD239B1W0201E6327XTSA1 Real Image1 ESD239B1W0201E6327XTSA1 Real Image2
Same model may have multiple batches, images only for reference.

ESD239B1W0201E6327XTSA1

Part No ESD239B1W0201E6327XTSA1
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Description TVS DIODE 22VWM 26.5VC WLL-2-3 / 26.5V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount WLL-2-3
Datasheet
ESD239B1W0201E6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Infineon Technologies
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V
Voltage - Clamping (Max) @ Ipp 26.5V
Current - Peak Pulse (10/1000µs) 3A (8/20µs)
Power - Peak Pulse 80W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 3.2pF @ 1GHz
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package WLL-2-3
Base Product Number ESD239
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names ESD239B1W0201E6327XTSA1DKR,ESD239B1W0201E6327XTSA1CT,SP001642886,ESD239B1W0201E6327XTSA1TR,ESD239B1W0201E6327XTSA1-ND
Standard Package 15,000
Win Source Part Number 962929-ESD239B1W0201E6327XTSA1
Ultra Librarian 3D Model Ultra Librarian ESD239B1W0201E6327XTSA1 CAD Model

Description

The Infineon Technologies ESD239B1W0201E6327XTSA1 is a TVS diode that is used for circuit protection. The device is packaged in a tape and reel and has a standard package of 15,000.

  • Packaging: Tape and Reel
  • Standard Package: 15,000
  • Mounting Technology: SMD (SMT)
  • Case: 0201 (0603 Metric)
  • Voltage - Reverse Standoff (Typ): 22V
  • Voltage - Clamping (Max) @ Ipp: 26.5V
  • Power - Peak Pulse: 80W
  • Capacitance @ Frequency: 3.2pF @ 1GHz
  • Current - Peak Pulse (10/1000µs): 3A (8/20μs)
  • ECCN: EAR99
  • Manufacturer: Infineon Technologies
