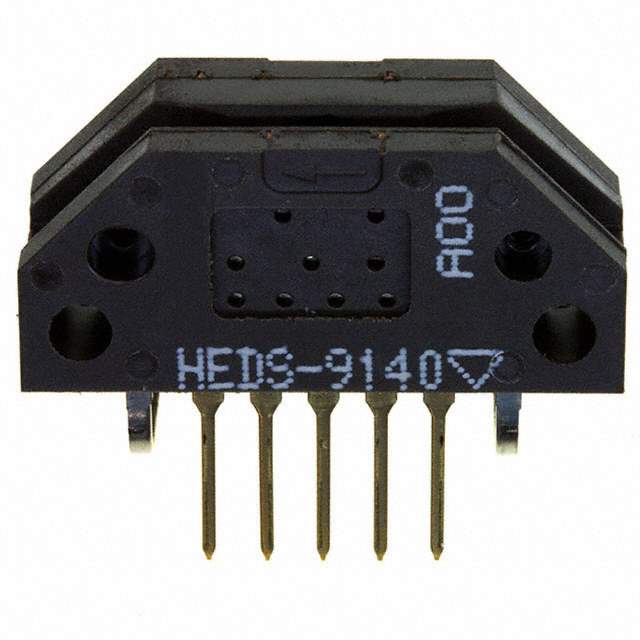

HEDS-9140#A00 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9140#A00

Part No HEDS-9140#A00
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER OPTICAL GAP 3CH 500CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Status Active
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 500
Supply Voltage - Operating 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Termination Style Terminal Pins
Win Source Part Number 1043030-HEDS-9140#A00
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Computers & Computer Peripherals, Automation & Process Control
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian HEDS-9140#A00 CAD Model

Description

The Broadcom Limited HEDS-9140#A00 is a chassis mount optical encoder that has a termination style of terminal pins.

  • Manufacturer: Broadcom Limited
  • Part Number: HEDS-9140#A00
  • Mounting Type: chassis mount
  • Termination Style: terminal pins
  • Output Type: quadrature with index (incremental)
  • Codewheel: not included
  • Applications: industrial, computers & computer peripherals, automation & process control
  • Supply and Demand: balanced
  • Supply Voltage: 5V
  • Quantity per Package: 100
