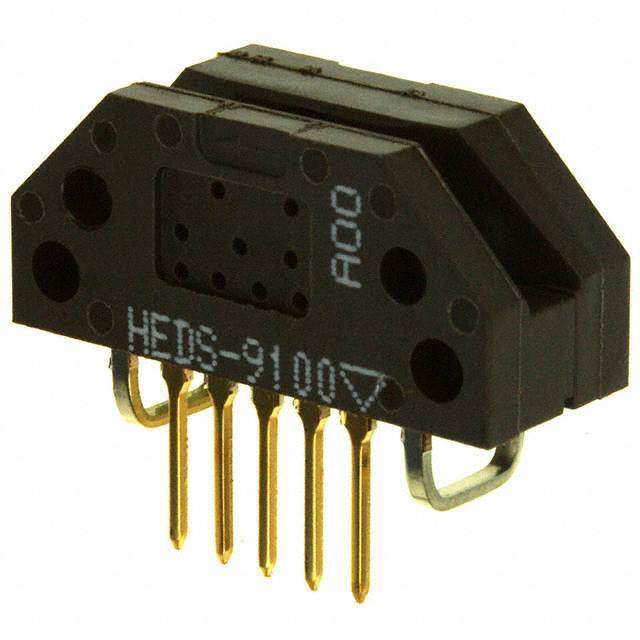

HEDS-9100#A00 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9100#A00

Part No HEDS-9100#A00
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER MOD OPT INCREMENTAL 2CH / Optical Encoder Rotary Incremental Straight Digital Through Hole PC Pin 500CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 500
Operating Supply Voltage 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775881-HEDS-9100#A00
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name HEDS-9100
Introduction Date June 11, 2005
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-9100#A00 CAD Model

Description

This HEDS series optical encoder is a chassis mount product with terminal pins for termination style, from Broadcom Limited.

  • Output Type: Quadrature (incremental)
  • Operating Supply Voltage: 5V
  • Encoder Type: Optical
  • Pulses Per Revolution: 500
  • Detent: No
  • Rotational Life: Cycles minimum
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Package Quantity: 100
