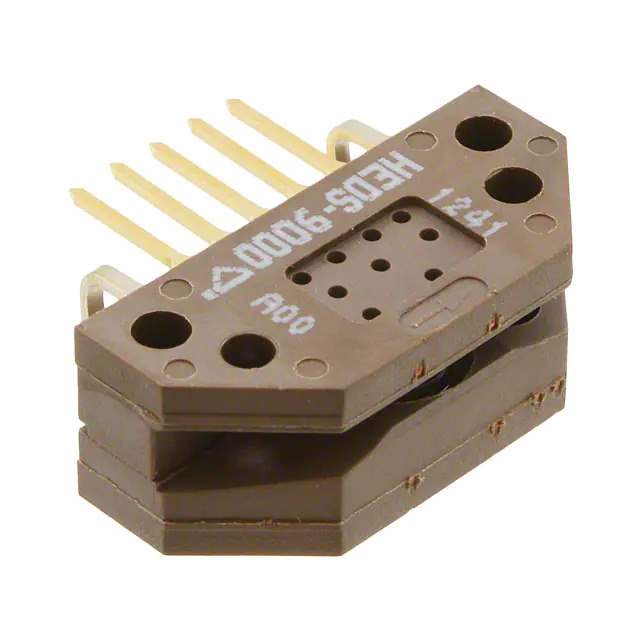

HEDS-9000#A00 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9000#A00

Part No HEDS-9000#A00
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 500PPR / Rotary Encoder Optical 500 Quadrature (Incremental) Vertical
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Broadcom Limited
Series HEDS
Package Bulk
Product Status Active
Programmable Not Verified
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 500
Voltage - Supply 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Type Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Base Product Number HEDS-9000
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 920155-HEDS-9000#A00
Ultra Librarian 3D Model Ultra Librarian HEDS-9000#A00 CAD Model

Description

The 920155-HEDS-9000#A00 is an encoder component in the sensors and transducers category. It belongs to the HEDS series and has a vertical orientation.

  • Output Type: Quadrature
  • Codewheel: Does not include a codewheel
  • Programmable: No
  • Encoder Type: Optical
  • Pulses per Revolution: 500
  • Voltage Supply: 5V
  • Mounting: Chassis mounted
  • Status: Active
  • Manufacturer: Broadcom Limited
  • Package: Bulk package with 100 pieces
