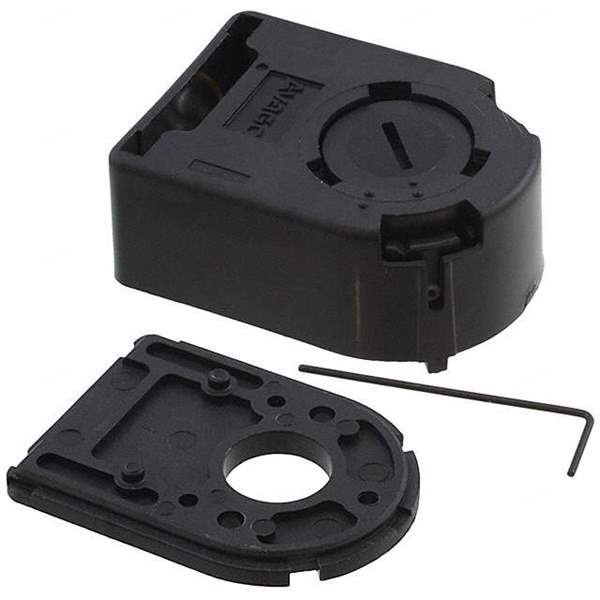

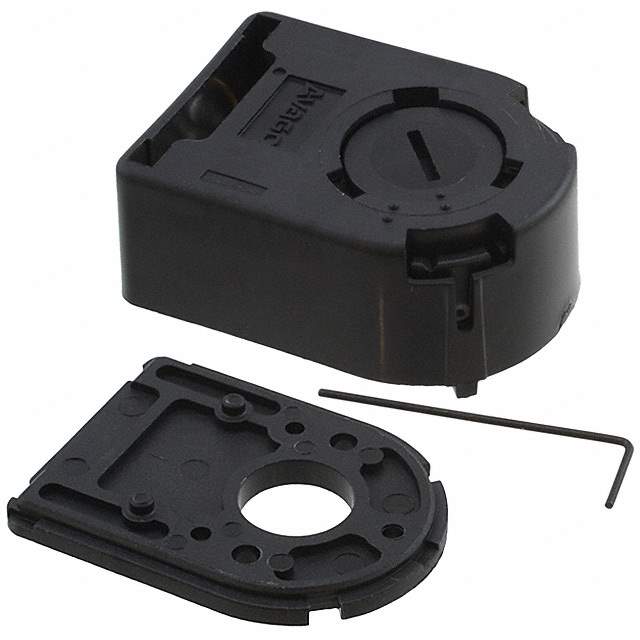

HEDS-5540#H14 Real Image
Same model may have multiple batches, images only for reference.

HEDS-5540#H14

Part No HEDS-5540#H14
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER KIT 3CH 400CPR 5MM / Optical Encoder Rotary Incremental Round with Slot Straight Digital Through Hole PC Pin 400CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 400
Operating Supply Voltage 5V
Actuator Type 5mm Open Center
Detent No
Built in Switch No
Mounting Chassis Mount, Motors
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775870-HEDS-5540#H14
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name HEDS-5540
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-5540#H14 CAD Model

Description

The HEDS-5540#H14 is an optical encoder that is designed for various applications.

  • Output Type: Quadrature with an index (incremental)
  • Supply Voltage: 5V
  • Encoder Type: Optical
  • Popularity: Medium
  • Supply and Demand Status: Limited
