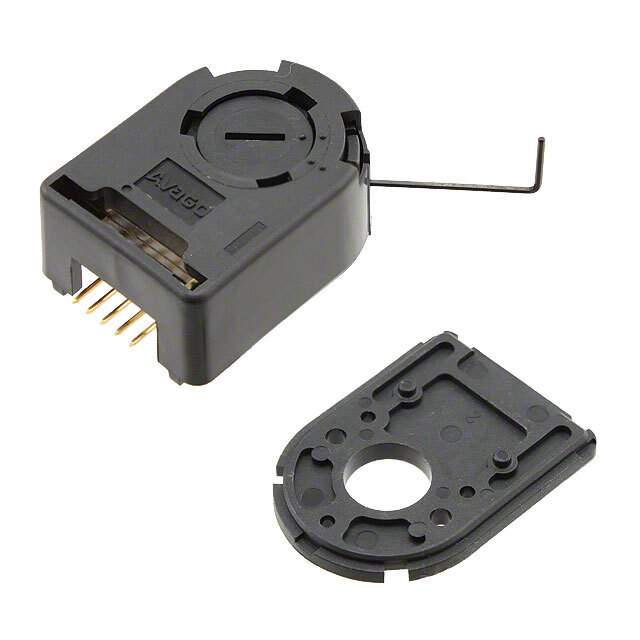

The Broadcom Limited electronic component with a Win Source Part Number of 775868-HEDS-5540#A12 is an HEDS series encoder with a quadrature output type (incremental) and 500 pulses per revolution.

• Output Type: Quadrature (incremental)
• Pulses per Revolution: 500
• Supply and Demand Status: Limited
• Quantity per Package: 50
• Actuator Type: 6mm open center
• Mounting: Chassis and motors
• Orientation: Vertical
• Termination Style: Terminal pins
• Introduction Date: May 31, 2005
• Estimated EOL Date: 2027
• Country of Origin: Malaysia
