Same model may have multiple batches, images only for reference.

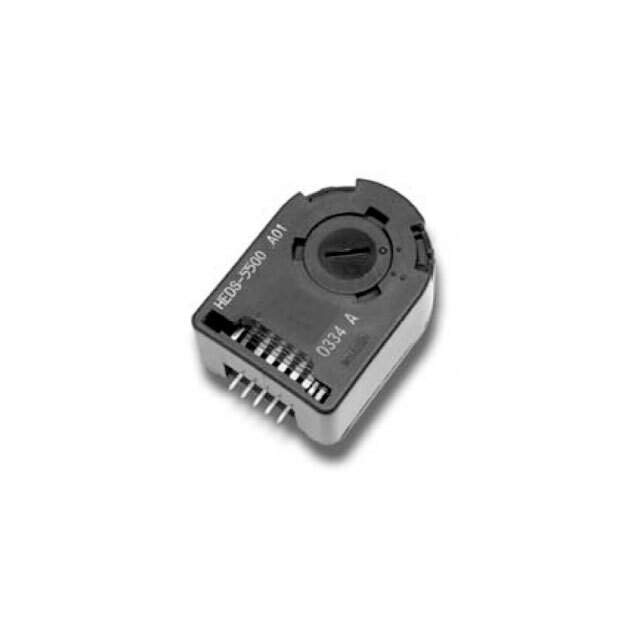

HEDS-5500#I02 Real Image
Same model may have multiple batches, images only for reference.

HEDS-5500#I02

Part No HEDS-5500#I02
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER KIT 2CH 512CPR 3MM / Optical Encoder Rotary Incremental Round with Slot Straight Digital Through Hole PC Pin 512CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 512
Operating Supply Voltage 5V
Actuator Type 3mm Open Center
Detent No
Built in Switch No
Mounting Chassis Mount, Motors
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775858-HEDS-5500#I02
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name HEDS-5500
Introduction Date May 31, 2005
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-5500#I02 CAD Model

Description

The Broadcom Limited HEDS-5500#I02 is an encoder type optical sensor that comes with a vertical orientation and has terminal pins for termination.

  • Orientation: Vertical
  • Termination: Terminal pins
  • Mounting: Chassis and motors
  • Output Type: Quadrature (incremental)
  • Supply Voltage: 5V
  • Actuator Type: 3mm open center
  • Built-in Switch: No
  • Family Name: HEDS-5500
  • Pulses per Revolution: 512
  • Rotational Life (cycles min): Not specified
  • Supply and Demand Status: Limited
  • Quantity per package: 50
