Same model may have multiple batches, images only for reference.

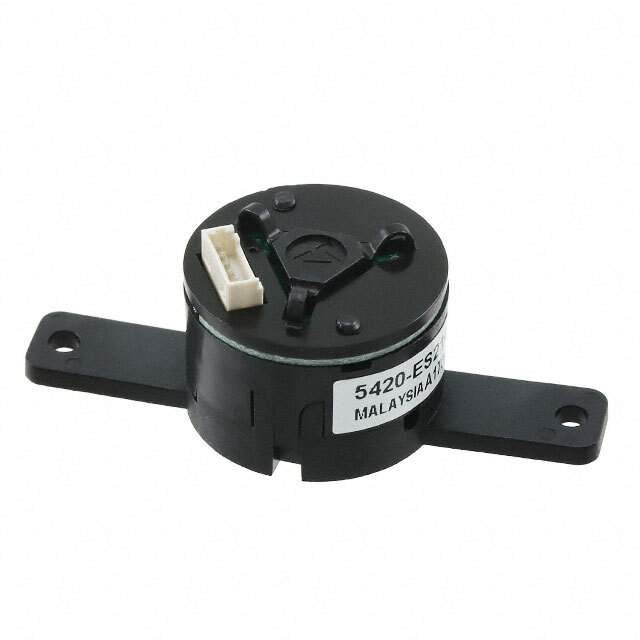

HEDR-5420-ES214 Real Image
Same model may have multiple batches, images only for reference.

HEDR-5420-ES214

Part No HEDR-5420-ES214
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 200PPR  /  Rotary Encoder Optical 200 Quadrature (Incremental) Vertical
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Encoders
Mfr Broadcom Limited
Series HEDR
Package Bulk
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 200
Voltage - Supply 5V
Actuator Type 5mm Open Center
Detent No
Built in Switch No
Mounting Type Chassis Mount, Motors
Orientation Vertical
Termination Style Terminal Pins
Base Product Number HEDR-5420
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Other Names 516-3508,HEDR-5420-ES214-ND
Standard Package 280
Win Source Part Number 1039203-HEDR-5420-ES214
Ultra Librarian 3D Model Ultra Librarian HEDR-5420-ES214 CAD Model

Description

The HEDR-5420-ES214 is an encoder sensor that falls under the category of Sensors, Transducers.

  • Product Name: HEDR-5420-ES214
  • Category: Sensors, Transducers
  • Series: HEDR
  • Built-in Switch: Yes
  • Type: Optical
  • Output: Quadrature (Incremental)
  • Actuator Type: 5mm Open Center
  • Pulses per Revolution: 200
  • Packaging: Bulk
  • Standard Package: 280
  • Voltage Supply: 5V
  • Mounting: Chassis and Motors
