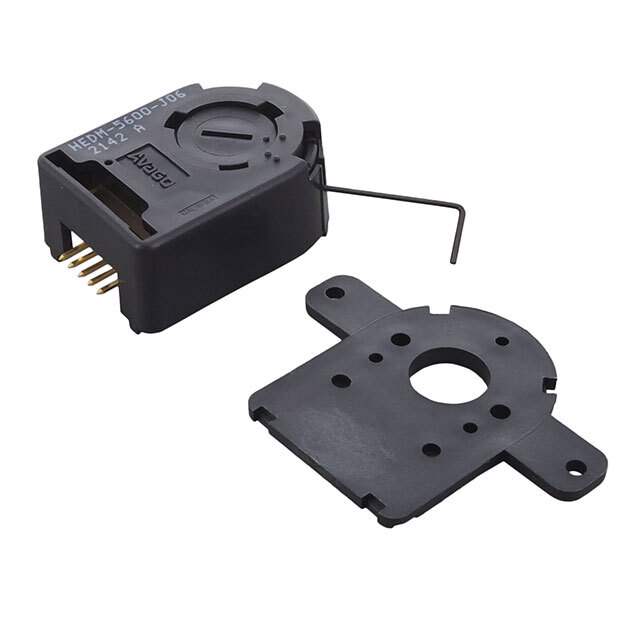

HEDM-5600#J06 Real Image
Same model may have multiple batches, images only for reference.

HEDM-5600#J06

Part No HEDM-5600#J06
Manufacturer Broadcom Limited
Catalog Encoders
Description KIT ENCODER 2CH 1024CPR 1/4"
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Status Active
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 1024
Supply Voltage - Operating 5V
Actuator Type 1/4" Open Center
Detent No
Built in Switch No
Mounting Chassis Mount, Motors
Termination Style Terminal Pins
Win Source Part Number 128261-HEDM-5600#J06
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian HEDM-5600#J06 CAD Model

Description

The Broadcom Limited 128261-HEDM-5600#J06 is a quadrature (incremental) encoder with a 1/4 inch open center actuator type. It has a pulse per revolution of 1024 and is mounted on chassis and motors. The encoder type is optical and it has no detent or built-in switch. It has a medium popularity with a limited supply and demand status. This encoder is commonly used in sensors and transducers and has 50 pieces per package.
