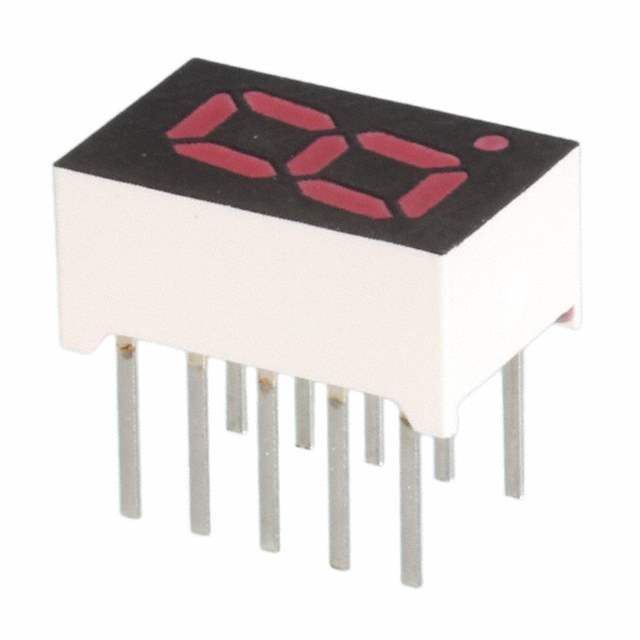

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Status Active
Number of Characters 1
Digit/Alpha Size 0.31" (8.00mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Forward Voltage 2V
Current - Test 20mA
Millicandela Rating 5.39mcd
Wavelength - Peak 635nm
Power Dissipation (Max) 105mW
Dimension 10-DIP (0.209", 5.30mm)
Win Source Part Number 110500-HDSP-U211
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 200
Family Name HDSP-U211
Introduction Date May 24, 2005
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian HDSP-U211 CAD Model

Description

The HDSP-U211 is a red-colored 7-segment display manufactured by Broadcom Limited.

  • Popularity: High
  • Millicandela Rating: 5.39mcd
  • Forward Voltage: 2V
  • Current: 20mA
  • Power Dissipation: 105mW
  • Display Type: 7-segment
  • Number of Characters: 1
  • Digit/Alpha Size: 0.31 inches (8.00mm)
  • Common Pin: Common Anode
