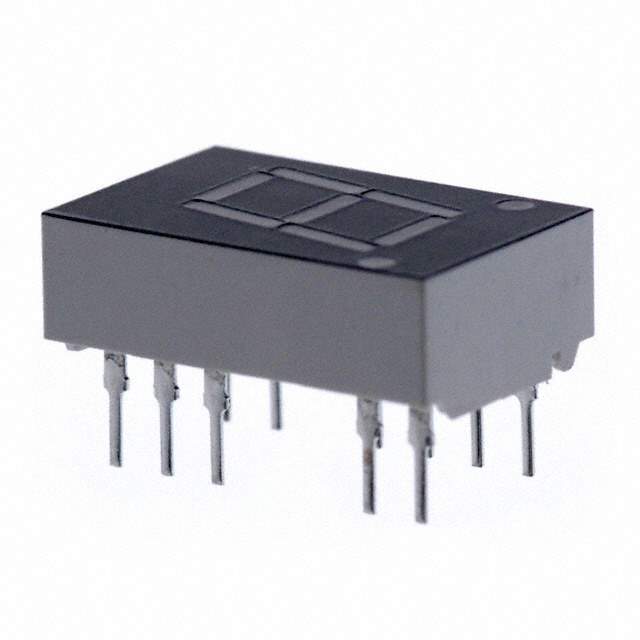

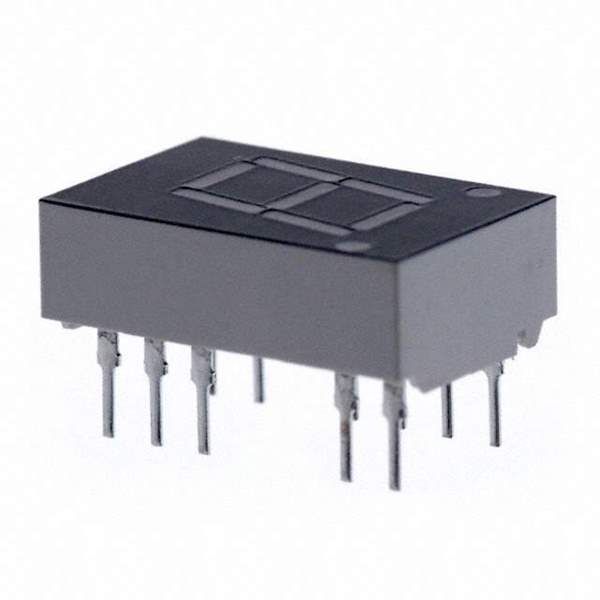

HDSP-E101 Real Image
Same model may have multiple batches, images only for reference.

HDSP-E101

Part No HDSP-E101
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description Low Current Seven Segment Displays Low Power Consumption | LED 7-SEG 10.9MM CA RED RHD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube
Number of Characters 1
Parts Dimension 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm)
Digit/Alpha Size 0.43" (11.00mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) 1.7V
Current - Test 5mA
Millicandela Rating 3.9mcd
Wavelength - Peak 645nm
Power Dissipation (Maximum) 37mW
Manufacturer Package 14-DIP , 10 Leads
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 1179749-HDSP-E101
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSP-E101 CAD Model

Description

The Broadcom Limited 7-segment display, HS-DP101, is a single digit display with a common anode pin manufactured by Broadcom Limited.

  • Color: Red
  • Peak Wavelength: 645nm
  • Millicandela Rating: 3.9mcd
  • Digit/Alpha Size: 0.43 inches (11.00mm)
  • Package: 14-DIP, 10 leads package
  • Category: Optoelectronics
  • Power Dissipation: 37mW
  • Manufacturer Pack Quantity: 200
  • MSL Level: 1 (Unlimited)
  • Dimensions: 0.750 inches (19.05mm) in height, 0.500 inches (12.70mm) in width, and 0.250 inches (6.35mm) in depth
  • Forward Voltage (Vf): 1.7V
  • Current Test: 5mA
