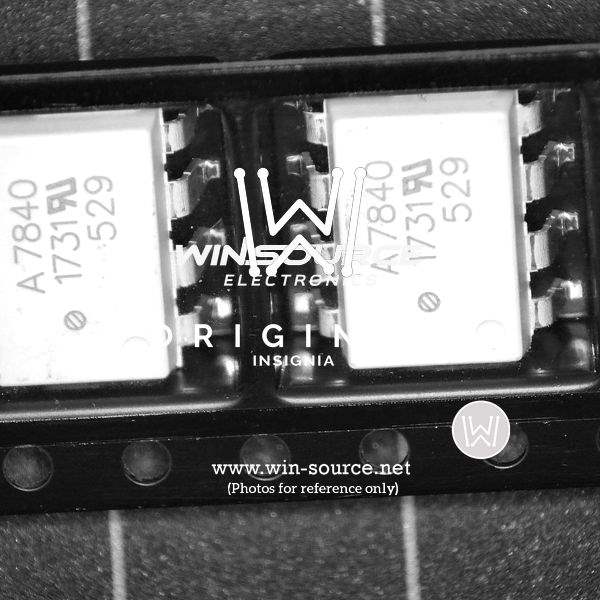

HCPL-7840-500E Real Image HCPL-7840-500E real image HCPL-7840-500E real image4576 HCPL-7840-500E Real Image

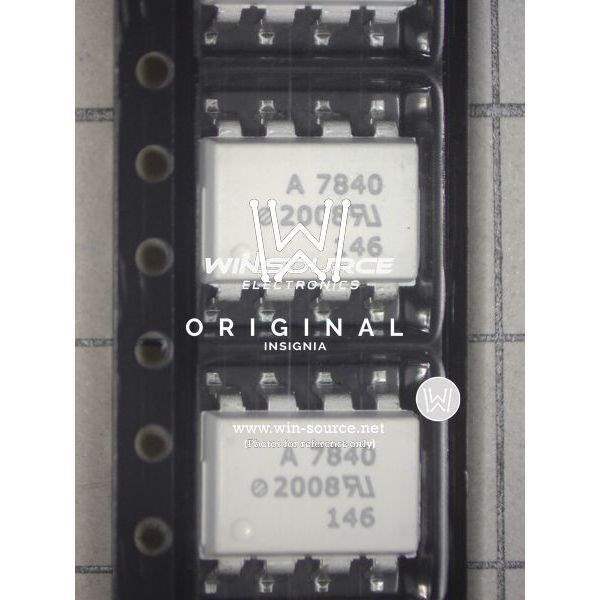

HCPL-7840-500E Real Image HCPL-7840-500E real image HCPL-7840-500E real image4576 HCPL-7840-500E Real Image
Same model may have multiple batches, images only for reference.

HCPL-7840-500E

Part No HCPL-7840-500E
Manufacturer Broadcom Limited
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description OptoCoupler 1-CH 5V 8-Pin PDIP SMD T/R / IC OPAMP ISOLATION 100KHZ 8DIPGW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Amplifier Type Isolation
Number of Circuits 1
Output Type Differential
-3db Bandwidth 100kHz
Current - Input Bias 500nA
Voltage - Input Offset 300μV
Operating Supply Current 10.86mA
Channel Output Current 15.5mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-DIP Gull Wing
Win Source Part Number 016885-HCPL-7840-500E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Motor Drive & Control, Power Management, Industrial
Quantity per package 1k pcs
Family Name HCPL-7840
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin Singapore, Thailand
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HCPL-7840-500E CAD Model

Description

The Broadcom Limited 016885-HCPL-7840-500E is a differential output isolation amplifier integrated circuit.

  • Circuit Count: Single
  • Mounting Type: Surface-Mounted Device (SMD)
  • Amplifier Type: Isolation
  • Output Type: Differential
  • -3dB Bandwidth: 100kHz
  • Current Input Bias: 500nA
  • Voltage Input Offset: 300μV
  • Operating Temperature: -40 to 85 degrees Celsius
  • Supply Voltage: 4.5V to 5.5V
  • Common Applications: Motor drive and control, power management, industrial applications
  • Package Type: 8-DIP Gull Wing
  • Supply: Reel
  • Halogen-Free: Non-Compliant
  • Estimated End-of-Life Date: 2027
