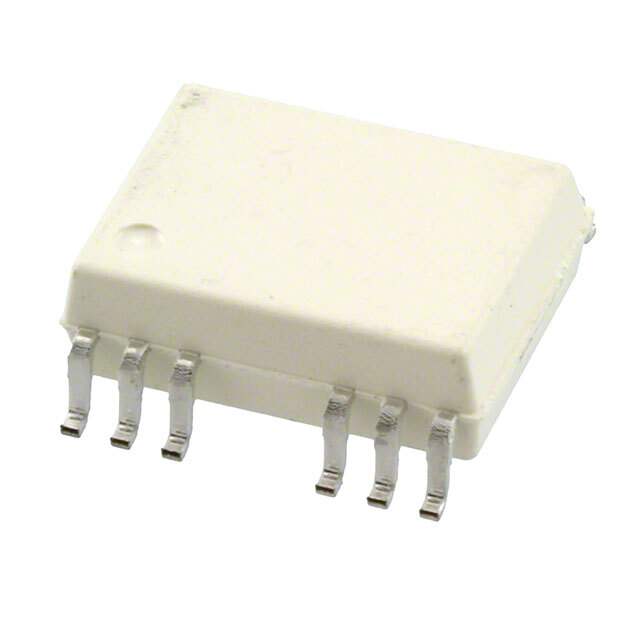

The Broadcom Limited HCPL-314J-000E is an active electronic component in the Isolators category.

• Packaging: Tube/Rail
• Mounting: SMD (SMT)
• Technology: Optical Coupling
• Current Output (High): 500mA
• Current Output (Low): -
• Forward Voltage: 1.5V
• Number of Channels: 2
• Common Mode Transient Immunity (Min): 25kV/μs
• Propagation Delay (tpLH Max): 700ns
• Propagation Delay (tpHL Max): 700ns
• Isolation Voltage: 5000Vrms
• Peak Output Current: 600mA
• Pulse Width Distortion (Max): -
• Rise Time: 50ns
• Fall Time: 50ns
• Continuous Forward Current (Max): 25mA
