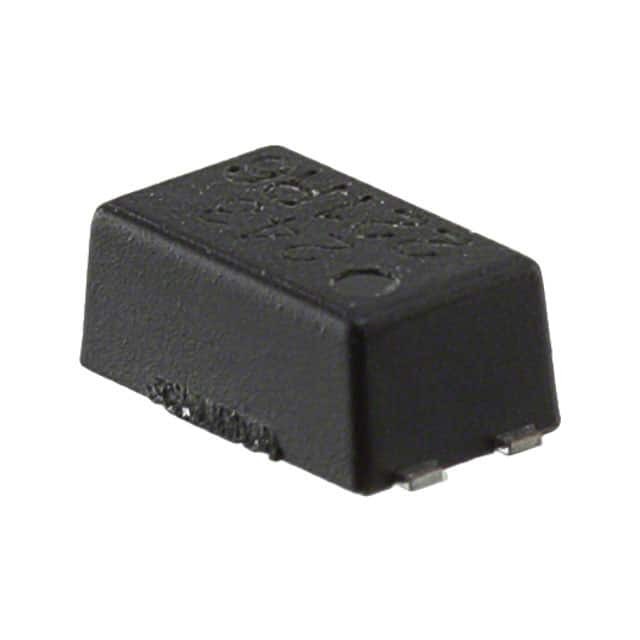

AQY221R6V Panasonic
Same model may have multiple batches, images only for reference.

AQY221R6V

Part No AQY221R6V
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 1A 0-30V  /  Solid State SPST-NO (1 Form A) 4-SMD (0.175", 4.45mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Panasonic Electric Works
Series PhotoMOS™ AQY
Package Tube
Mounting SMD (SMT)
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 30 V
Load Current 1 A
On-State Resistance (Max) 350 mOhms
Termination Style SMD (SMT) Tab
Package / Case 4-SMD (0.175", 4.45mm)
Supplier Device Package 4-SSOP
Base Product Number AQY221
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8536.41.0030
Other Names 255-5279-2INACTIVE,255-5279,255-5279-6INACTIVE,255-5279-6-ND,255-5279-2-ND,255-5279-6,255-5279-1-ND,255-5279-2,255-5279-1,AQY221R6V-ND
Standard Package 150
Win Source Part Number 1045890-AQY221R6V
Ultra Librarian 3D Model Ultra Librarian AQY221R6V CAD Model

Description

The Panasonic PhotoMOS™ AQY series solid state relay is a high-performance relay that is ideal for use in electronic circuits.

  • Voltage Input: 1.14VDC
  • Output Type: AC/DC
  • Circuit Configuration: SPST-NO (1 Form A)
  • Load Current: 1A
  • On-State Resistance: 350mOhms
  • Voltage Load: 0V to 30V
  • Package: 4-SMD (0.175", 4.45mm)
  • Supplier Device Package: 4-SSOP
