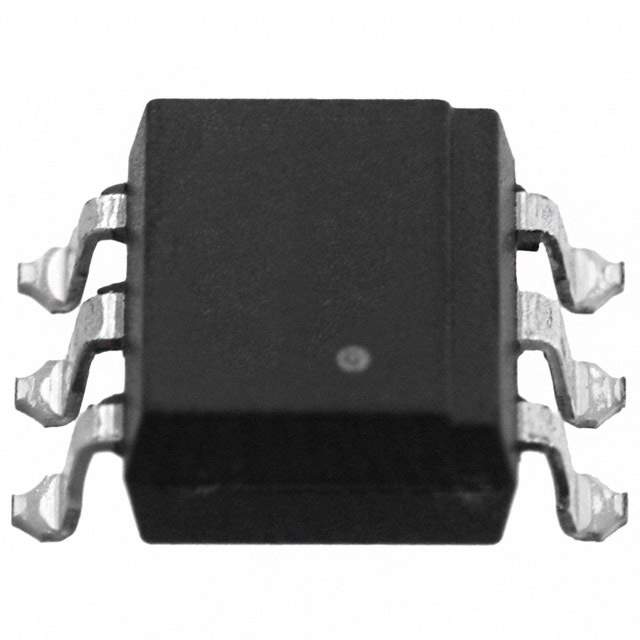

CNY17-3-360E Real Image
Same model may have multiple batches, images only for reference.

CNY17-3-360E

Part No CNY17-3-360E
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 6SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 100% @ 10mA
Maximum DC Current Transfer Ratio 200% @ 10mA
Rise and Fall Time 5μs, 5μs
Input Type DC
Maximum Output Voltage 70V
Channel Output Current 150mA
Forward Voltage 1.4V
Continuous forward current- Max 60mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Win Source Part Number 1029840-CNY17-3-360E
Popularity Medium
Supply and Demand Status Balance
Quantity per package 65
Ultra Librarian 3D Model Ultra Librarian CNY17-3-360E CAD Model

Description

The Broadcom Limited CNY17-3-360E is a DC input type isolator with 1 channel.

  • Forward Voltage: 1.4V
  • Vce saturation (Max): 300mV
  • Isolation Voltage: 5000Vrms
  • Temperature Range: -55°C to 100°C
  • Minimum DC Current Transfer Ratio: 100% @ 10mA
  • Maximum DC Current Transfer Ratio: 200% @ 10mA
  • Rise and Fall Time: 5μs, 5μs
  • Maximum Output Voltage: 70V
  • Channel Output Current: 150mA
  • Package: 6-SMD
  • Packaging: tube/rail
