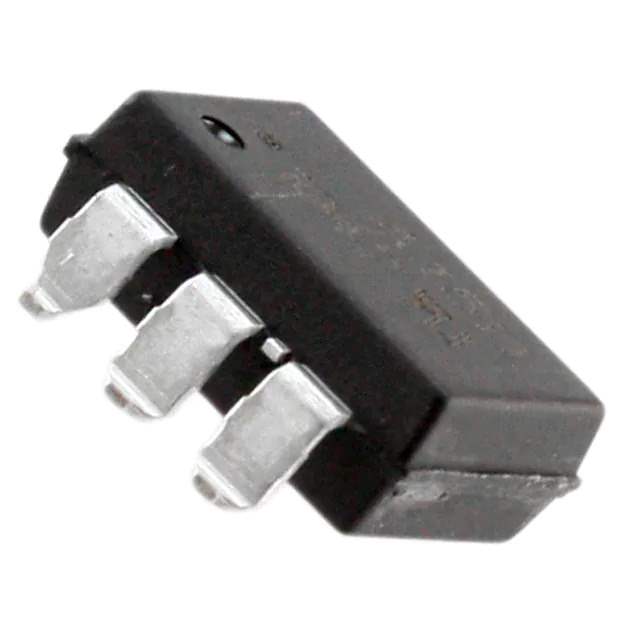

ASSR-1611-501E Real Image
Same model may have multiple batches, images only for reference.

ASSR-1611-501E

Part No ASSR-1611-501E
Manufacturer Broadcom Limited
Catalog Solid State Relays
Description SSR RELAY SPST-NO 2.5A 0-60V / Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Broadcom Limited
Series ASSR
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.3VDC
Voltage - Load 0 V ~ 60 V
Load Current 2.5 A
On-State Resistance (Max) 100 mOhms
Termination Style Gull Wing
Package / Case 6-SMD (0.300", 7.62mm)
Supplier Device Package 6-DIP Gull Wing
Base Product Number ASSR-1611
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 565013-ASSR-1611-501E
Ultra Librarian 3D Model Ultra Librarian ASSR-1611-501E CAD Model

Description

The 565013-ASSR-1611-501E is a solid state relay from Broadcom Limited.

  • Category: Relays
  • Series: ASSR
  • Termination Style: Gull Wing
  • Package: Tape and Reel
  • Standard Package Quantity: 1,000 pieces
  • Input Voltage: 1.3VDC
  • Output: AC and DC
  • Circuit Configuration: SPST-NO (Single-Pole Single-Throw Normally Open)
  • On-State Resistance: 100 mOhms (Maximum)
  • Load Current: 2.5A
  • Load Voltage: 0V to 60V
  • Mounting: Surface Mount
  • Package: 6-SMD
  • Status: Active
